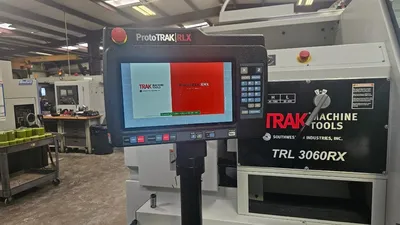

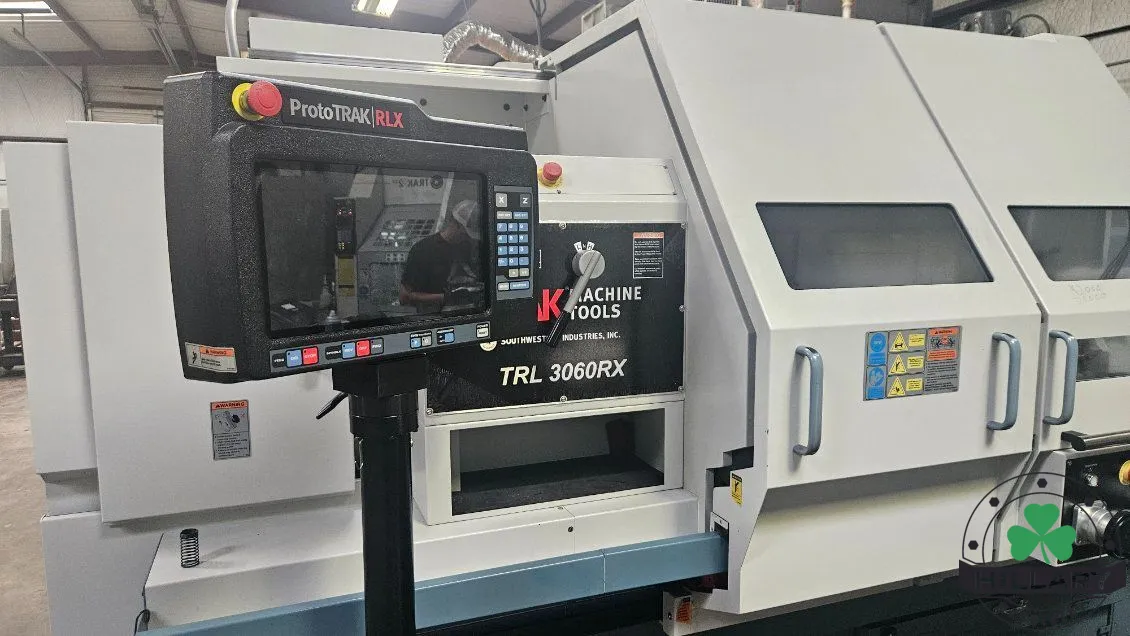

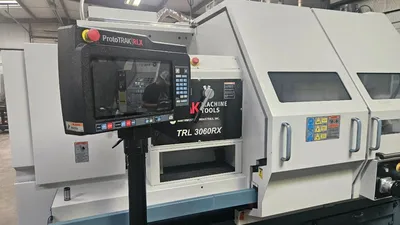

PRE-OWNED TRAK TRL 3060RX FLATBED CNC LATHE
ConditionUsed
This machine has very low hours.....100+/-
Equipped with
Advanced Features w/ Verify, RLX
Auxiliary Output Option-PTRLX
Buck Chuck-20" A2 for 3060
Adapter for Customer's Own Rear Chuck for 3060
DXF Converter RLX Lathe
Cam File Out Converter RLX

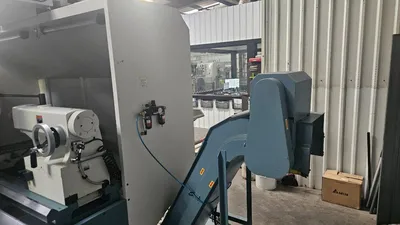

Chip Conveyor 30120RX
Follow Rest Option 30120RX
Steady Rest Option 30120RX (2 sets of fingers)
TRAKing Option
Tooling Kit -1.25" for TRL / Dorian tool post and holders
See full specifications at
PDF http://hillaryinc.net/trakpdf/traklathes.pdf
Gap bed lathe with 43.5″ swing over 15.5″ gap
60″ between centers with 60″ maximum cutting length
Generous 6.3″ spindle through hole
30 HP continuous spindle motor
Tapered roller bearings
High and low speed range settings
Standard on RX Series Lathes:
ProtoTRAK RLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds
Constant Surface Speed (CSS) Programming
Inch Per Revolution (IPR) Programming
Optional TRAKing® for manual control of CNC programs
Optional turret for automatic tool changes
FOB: Odessa, Texas
This machine has very low hours.....100+/-
Equipped with
Advanced Features w/ Verify, RLX
Auxiliary Output Option-PTRLX
Buck Chuck-20" A2 for 3060
Adapter for Customer's Own Rear Chuck for 3060
DXF Converter RLX Lathe
Cam File Out Converter RLX
Chip Conveyor 30120RX
Follow Rest Option 30120RX
Steady Rest Option 30120RX (2 sets of fingers)
TRAKing Option
Tooling Kit -1.25" for TRL / Dorian tool post and holders
See full specifications at
PDF http://hillaryinc.net/trakpdf/traklathes.pdf
Gap bed lathe with 43.5″ swing over 15.5″ gap
60″ between centers with 60″ maximum cutting length
Generous 6.3″ spindle through hole
30 HP continuous spindle motor
Tapered roller bearings
High and low speed range settings
Standard on RX Series Lathes:
ProtoTRAK RLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds
Constant Surface Speed (CSS) Programming
Inch Per Revolution (IPR) Programming
Optional TRAKing® for manual control of CNC programs
Optional turret for automatic tool changes
Imperial
| Control | CNC |
| Swing | 33" |
| Distance Between Centers | 60" |
| Bar Capacity | 6.3" |
| Max RPM | 1,300 RPM |
| Power | 30 hp |
| Tailstock | Yes |
FOB: Odessa, Texas
