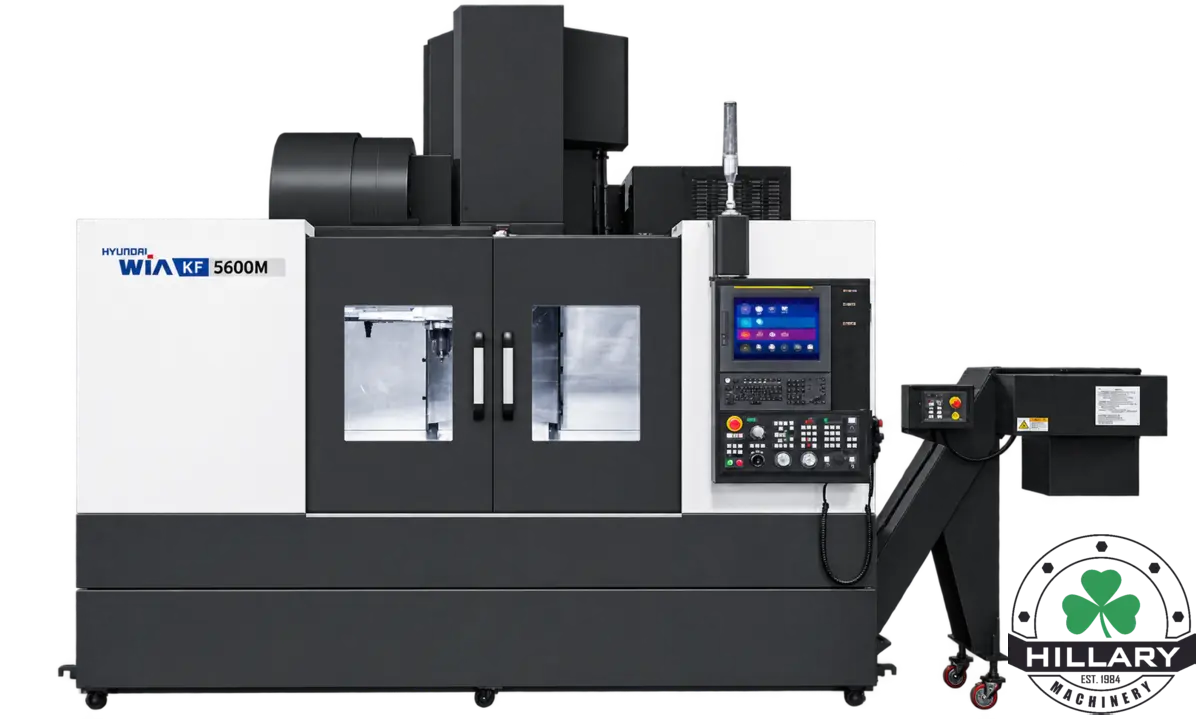

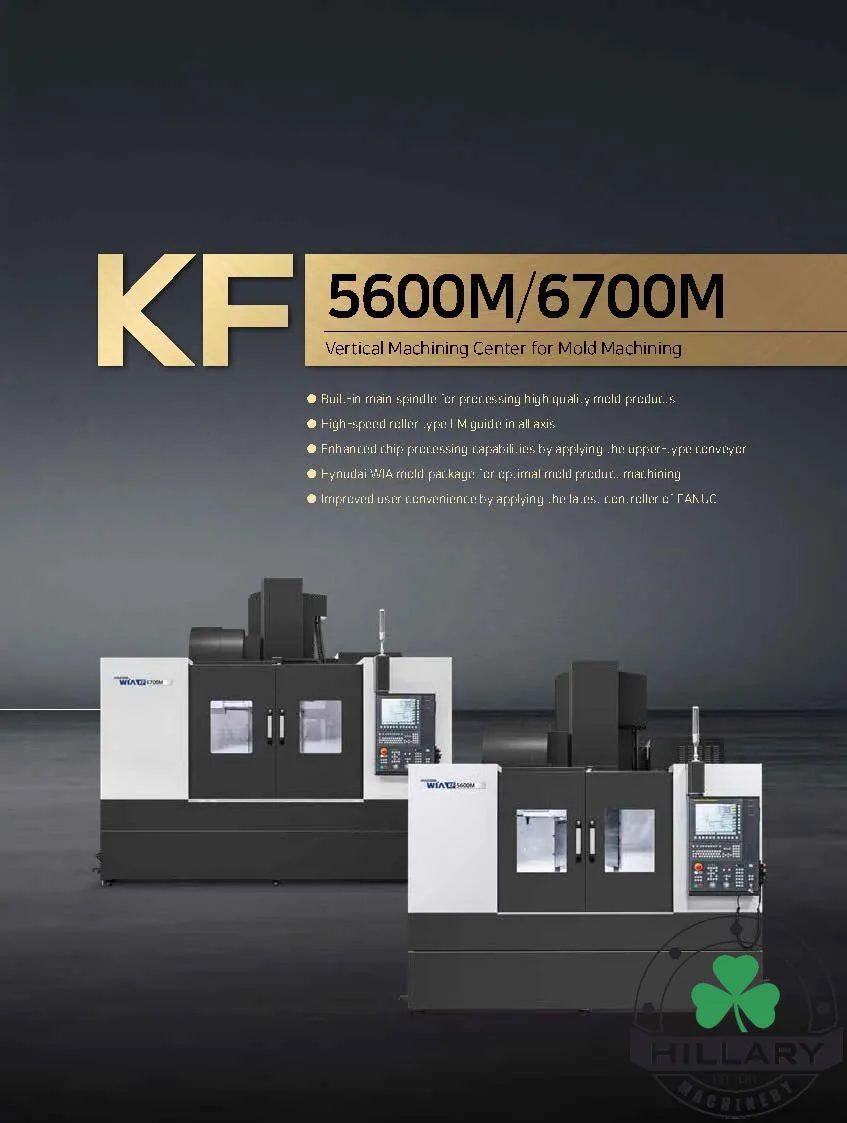

HYUNDAI WIA KF5600M High Speed Mold Making VMC
ConditionNew
New

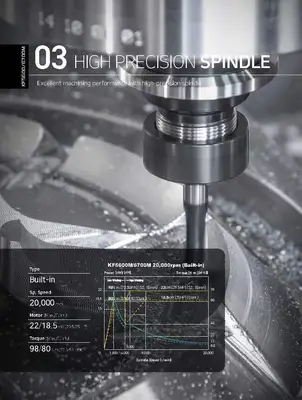

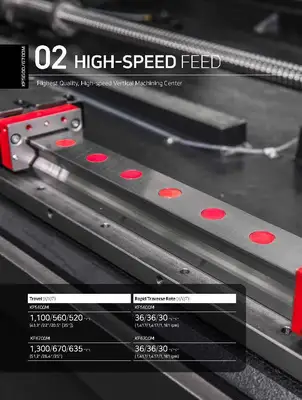

Hyundai WIA KF5600M is a high-rigidity 3-axis Vertical Machining Center optimized for the mold-making and die industry. It features heavy-duty bed construction, high-speed roller LM guides, and a built-in high-RPM spindle designed for precision contouring and fine surface finishes. Featuring a CAT40 Big Plus or HSK63 20,000 RPM spindle.
Hyundai WIA KF5600M is a high-rigidity 3-axis Vertical Machining Center optimized for the mold-making and die industry. It features heavy-duty bed construction, high-speed roller LM guides, and a built-in high-RPM spindle designed for precision contouring and fine surface finishes. Featuring a CAT40 Big Plus or HSK63 20,000 RPM spindle.
Imperial
| Control | CNC (Fanuc) |
| SPINDLE TAPER | CAT40 (BIG PLUS) |
| X Travel | 43.3" |
| Y Travel | 22" |
| Z Travel | 20.5" |
| TABLE (L) | 49.2" |
| TABLE (W) | 22" |
| SPINDLE SPEED | 20,000 RPM |
| SPINDLE HP | 30 hp |

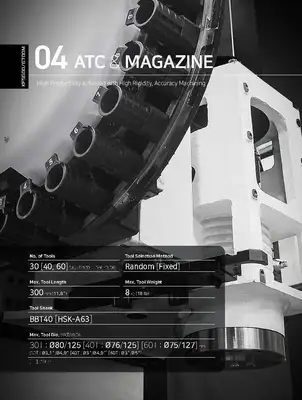

| MAGAZINE CAPACITY | 30 |
