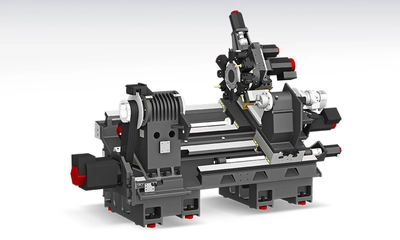

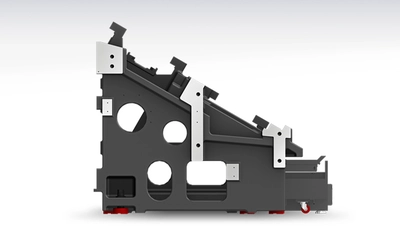

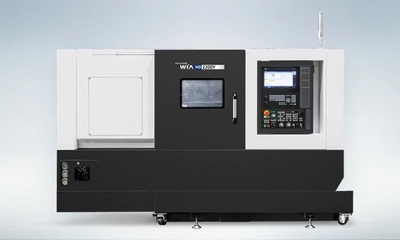

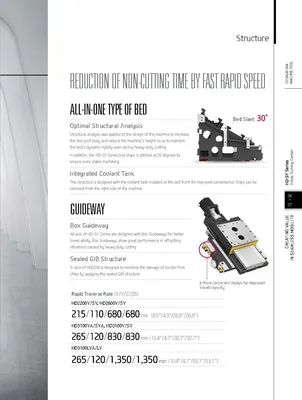

The HD3100LY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD-SY%20Series%20ENG.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews

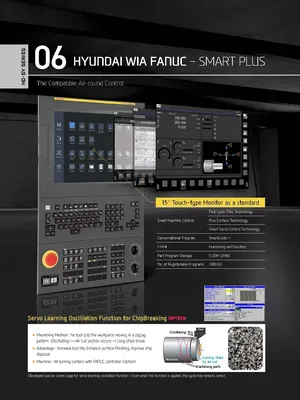

• Hyundai Wia Fanuc - Smart Plus control

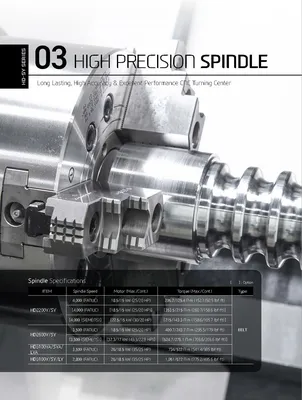

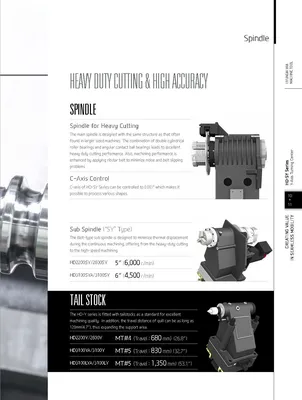

• Max. 2,800 RPM belt driven spindle [3,500 RPM]
• Powerful 34.9 HP (26 kW) spindle motor
• Spindle orientation
• 87 PSI(6bar) multi-stage coolant pump
• Double Pre-Tensioned Ball screws

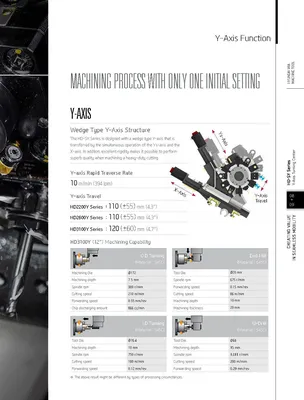

• Fast 945 IPM (24m/min) X, 394 IPM (10m/min) Y and 1,181 IPM (30m/min) Z axis rapid speed
• Manual Tool Setter
• Programmable tail stock
• MT #5 Center
• Auto Part Catcher
• Right Side Hinge Type Chip Conveyor
• 3 color tower signal
• LNS bar feeder interface
• 52.8 gal (200 ℓ) Coolant Tank
• Standard Hyd. Unit - 35Bar (508 psi) / 7.9 gal (30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
