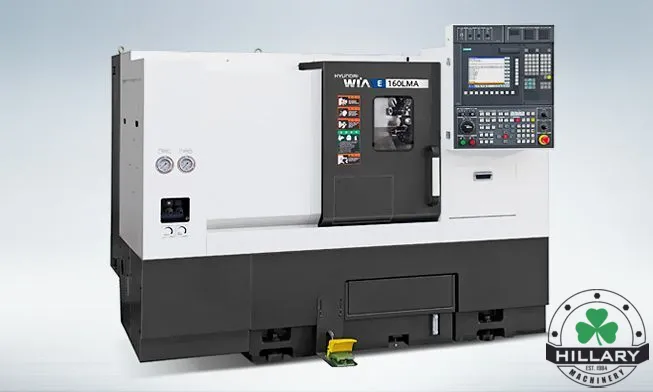

Hyundai WIA E160A Compact Turning Center with 6" Chuck
ConditionNew
New
The Hyundai WIA E160A is a compact, high-speed horizontal CNC turning center featuring a rigid 45-degree slanted one-piece Meehanite cast iron bed, a 6-inch chuck, a 6,000 RPM spindle, and a 12-position servo turret designed for high-precision machining of small-diameter components.
The Hyundai WIA E160A is a compact, high-speed horizontal CNC turning center featuring a rigid 45-degree slanted one-piece Meehanite cast iron bed, a 6-inch chuck, a 6,000 RPM spindle, and a 12-position servo turret designed for high-precision machining of small-diameter components.
Imperial
| Control | CNC (Fanuc) |
| CHUCK SIZE (in) | 6 |
| MAX TURNING DIAMETER (in) | 11 |
| BAR CAPACITY (in) | 1.78 |
| MAX TURNING LENGTH (in) | 11.8 |
| SWING OVER BED (in) | 11.9 |
| TAILSTOCK | Yes |
| SPINDLE SPEED (rpm) | 6000 |
| SPINDLE NOSE | A2-5 |
| SPINDLE MOTOR HP | 15 |
