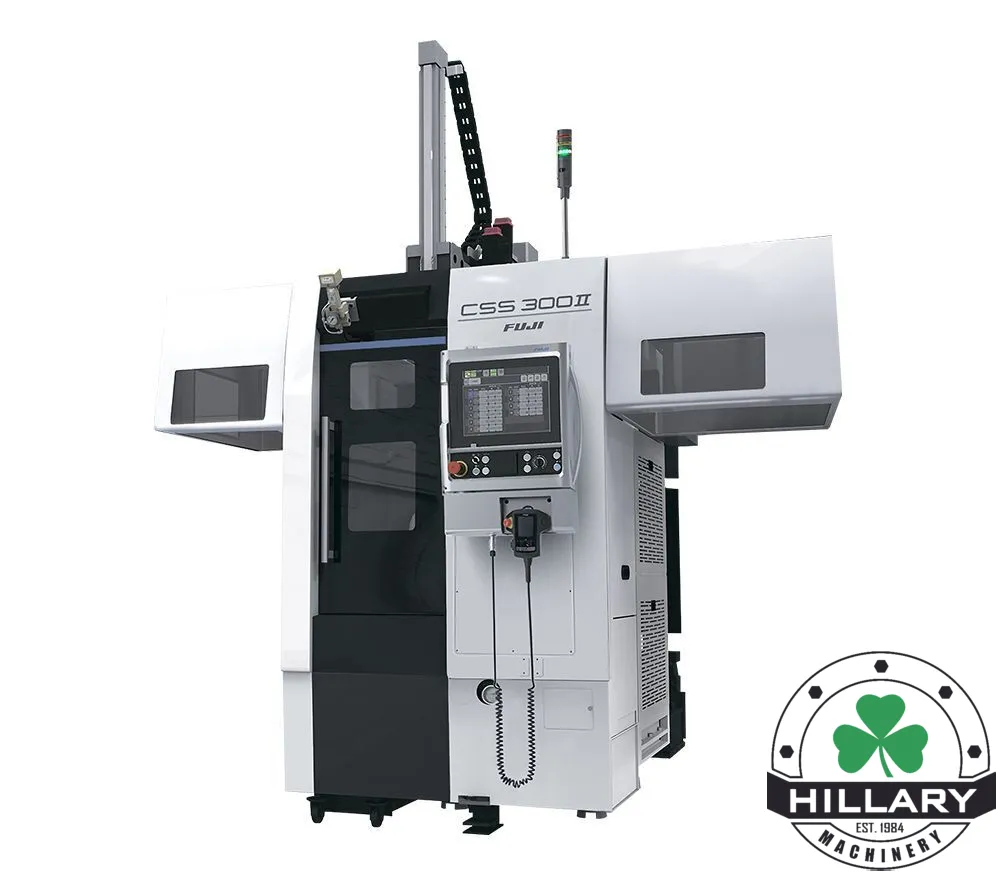

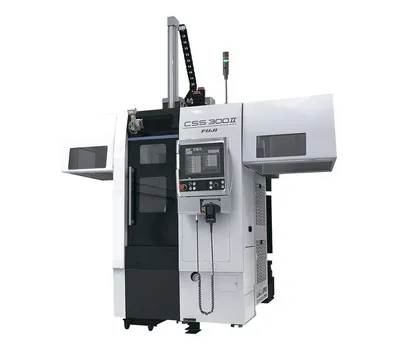

FUJI CSS-300II Automated Twin Spindle Lathe

Description

The CSS-300II Front Facing Twin Spindle Lathe is exceptionally rigid, fast and easy to operate.

This robust lathe performs with extremely rapid robot traverse and turret indexing speeds. Equipped with a custom HMI and a single integrated Fanuc control panel, the CSS-300II enables convenient operation and setup of the machine and robot.

Turret index times as low as 0.19 sec.
Robot cycle times 17.9 sec.
Loading times 4.8 sec.
Rigid bed design, max. grooving width 14mm
IoT connection-ready
Reliable automated heavy parts loading - 200mm x 100mm
5kg + 5kg capacity
8" - 10" workholding

PDF https://www.fujimachine.com/pdf/CSD300II-CSS300II.pdf
