New

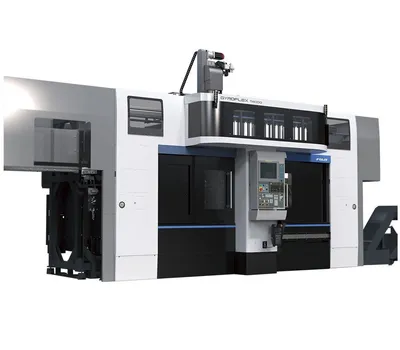

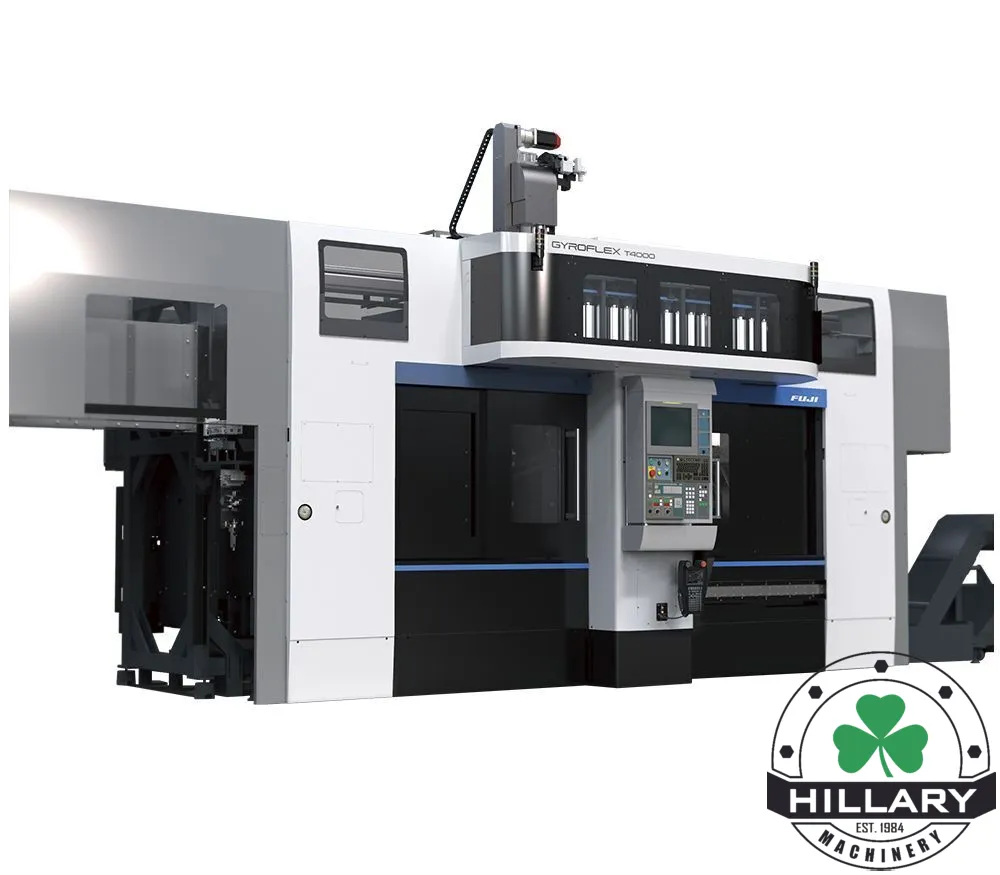

The GYROFLEX Automated Multitasking Machine increases parts processing efficiency, accuracy and flexibility. Featuring Fuji legendary automation, the Gyroflex offers the size, rigidity and productivity necessary to handle simple to complex workpieces.
Built-in FUJI LX-40 high-speed 3-axis gantry robot
Dual opposed main spindles
Exceptionally rigid, productive and flexible
Machines complex parts efficiently and accurately
Performs parts prototyping, plus high-volume and high-mixed production
Reduced setup, changeover, and part transfer times
B-axis high performance milling tool spindle with 15 HP and 12,000 MAX RPM
Two 15-station live tool turrets mounted on the highly rigid X & Y axis box way slides
Recommended Work Size - mm (inch) ø300 x 150 (ø11.8 x 5.9)
Spindle Diameter - mm (inch) ø120 (ø4.7)
Spindle Nose A2-8
Spindle Bore ø67 (ø2.6)
Spindle Speed - rpm Max. 4,000
Spindle Motor - kW (hp) 18.5/22 (25/30)
Number of Tool Stations 15 + 15
Slide stroke: Z-axis - mm (inch) 960 (37.80)
Feed Motor: Z-axis - kW (hp) 4.5 (6.0)
CNC Control FANUC 31i-B Plus

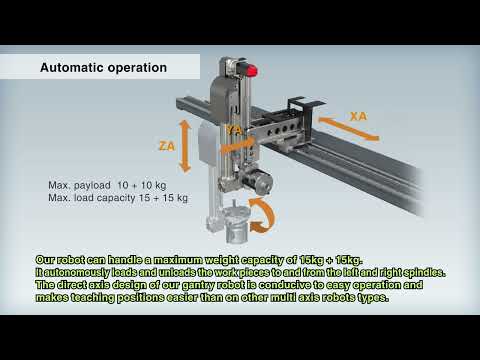

Robot Fuji LX-40
Carrying capacity - kg (lbs) 10 + 10 (22 + 22)
Footprint - mm (feet, inch) 5000 x 3000 ( 16'5" x 9'10")
Machine Height - mm (feet, inch) 3530 (11'7")
