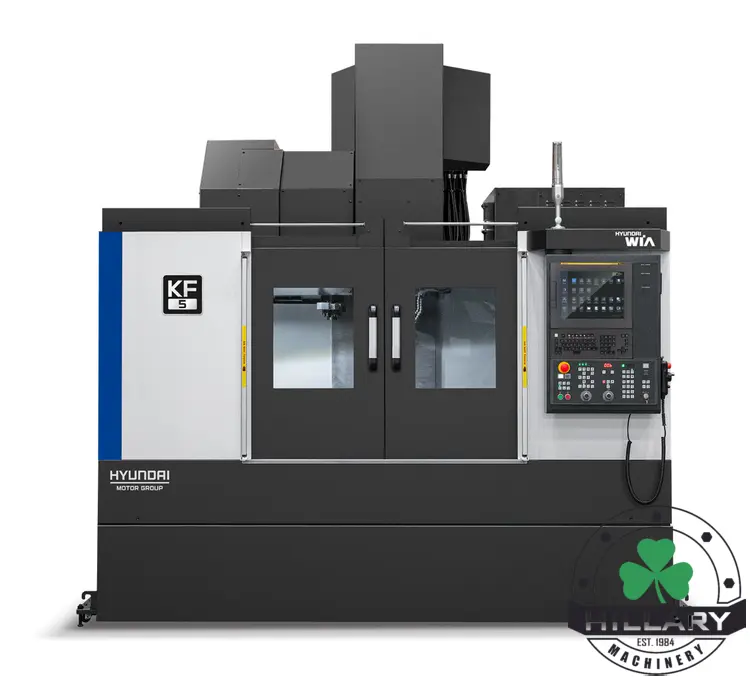

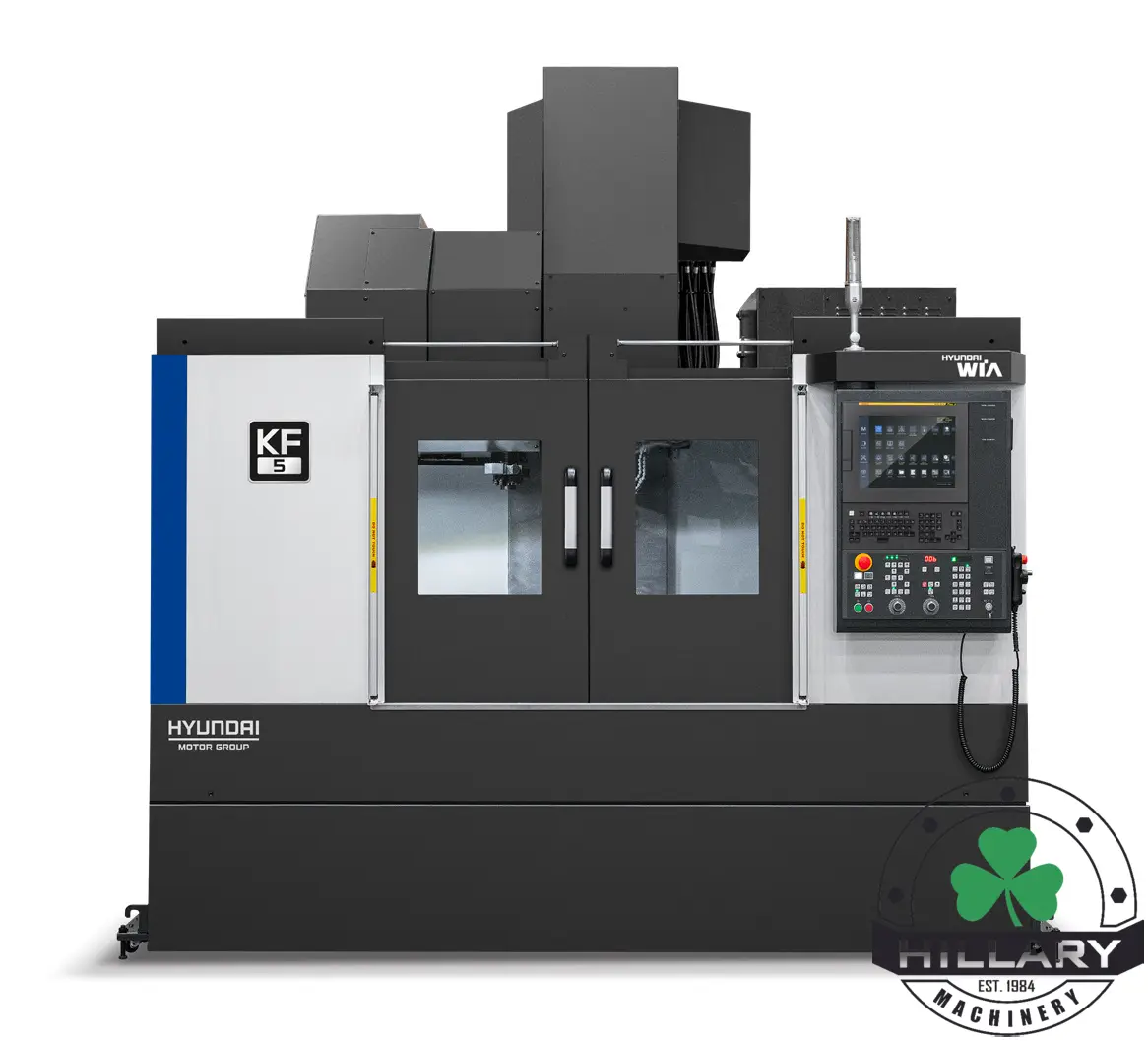

Hyundai Wia KF5 12K RPM Vertical Machining Center with 25" of Z-Axis Travel
ConditionNew
New
Introducing the Hyundai Wia KF5 Vertical Machining Center, a new powerhouse from HYUNDAI WIA CNC MACHINE TOOLS. Featuring CAT40 taper, 8K or 12K RPM spindle, and 25 hp, 87 ft-lbs of max. torque it offers an X/Y/Z travel of 41.3"/22"/25". Table: 51.2" x 22". Magazine: 30 capacity.
PDF
http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia%20KF-5%20VMC.pdf
Introducing the Hyundai Wia KF5 Vertical Machining Center, a new powerhouse from HYUNDAI WIA CNC MACHINE TOOLS. Featuring CAT40 taper, 8K or 12K RPM spindle, and 25 hp, 87 ft-lbs of max. torque it offers an X/Y/Z travel of 41.3"/22"/25". Table: 51.2" x 22". Magazine: 30 capacity.
PDF
http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia%20KF-5%20VMC.pdf
Imperial

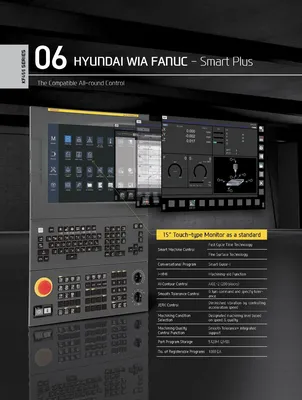

| Control | CNC (Fanuc) |
| SPINDLE TAPER | CAT40 (BIG PLUS) |
| X Travel | 41.3" |
| Y Travel | 22" |
| Z Travel | 25" |
| TABLE (L) | 51.2" |
| TABLE (W) | 22" |
| SPINDLE SPEED | 12,000 RPM |
| SPINDLE HP | 25 hp |

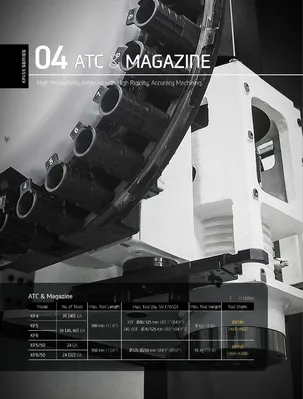

| MAGAZINE CAPACITY | 30 |
