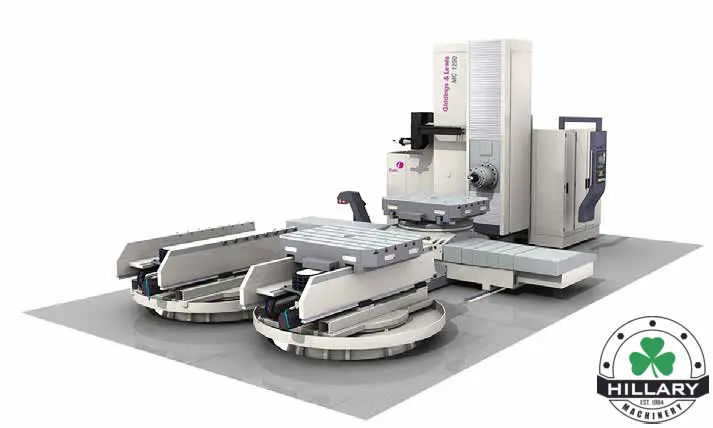

Giddings & Lewis MC Series pallet shuttle horizontal boring mills
The MC Series adds machining center capabilities to Fives’ portfolio of Giddings & Lewis horizontal boring mills. Automate large part production and reduce non-cutting time with the MC Series standard two-pallet shuttle system and tool changer. Multiple pallet configurations are available.
Optional X-Axis Travel: 141.73"
Optional Y-Axis Travel: 102.36" / 122"
Optional W-Axis Travel: 78.7" / 98.4" / 137.8"
Optional Table: 49.1" x 63" (70.9)
Advantages of table-type horizontal boring mills
-Load parts while machining with the dual pallet shuttle MC Series boring mill
-Rigid machining platform with one-piece column base and bed
-High performance drive and way system provides both superior stiffness and allows fast traverse – 25 m/min
-Modular design – select machine features and capabilities based on applications.
Choose from three headstocks – two or four-speed, 130 or 155 mm diameter
Optional X-Axis Travel: 141.73"
Optional Y-Axis Travel: 102.36" / 122"
Optional W-Axis Travel: 78.7" / 98.4" / 137.8"
Optional Table: 49.1" x 63" (70.9)
Other Available options:
-Contouring heads and programmable boring bars
-Right angle heads
-Attachment racks
-High-pressure coolant through the spindle
-Large capacity tool magazines
-Tool and part probes
-Controls – Siemens, Fanuc or Heidenhain
