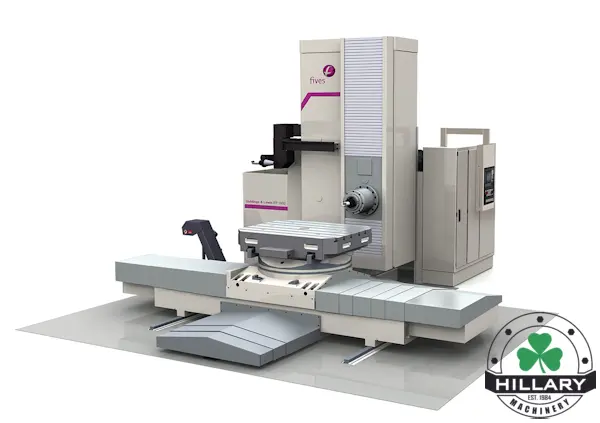

Fives Giddings & Lewis RT 1600 Rotary Table Type Horizontal Boring Mill

Description

Giddings & Lewis RT series rotary table horizontal boring mills
Fives offers its Giddings & Lewis RT Series with a built-in contouring rotary table. The flexibility of an additional axis makes this machine well-suited for prismatic parts requiring work on multiple surfaces. Heavy, high-precision cuts are possible with the rigid machining platforms of all Giddings & Lewis boring mills.

Optional X-Axis Travel: 141.73"
Optional Y-Axis Travel: 102.36" / 122" / 141.73"
Optional W-Axis Travel: 78.7" / 98.4" / 137.8"
Optional Table: 63" x 98.42"

Advantages of table-type horizontal boring mills
-Substantial weight capacity – table handles parts weighing as much as 40,000 kg
-Rigid machining platform with one-piece column base and bed.
-High performance drive and way system provides both superior stiffness and allows fast traverse – 25 m/min
-Modular design – select machine features and capabilities based on applications.

Choose from three headstocks – two or four-speed, 130 or 155 mm diameter
