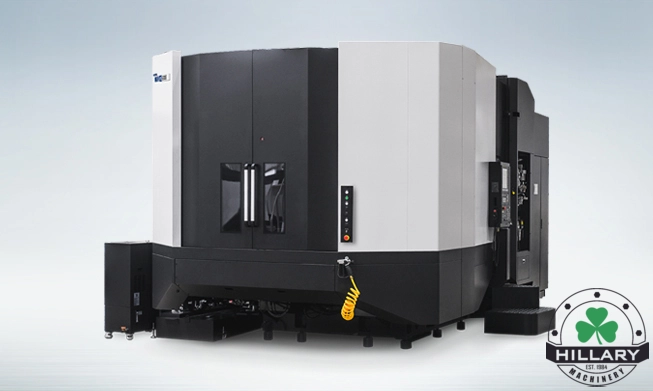

Next Generation High Efficiency Machining Center; High Rigidity Box-type Structure; A symmetrical structure design with the center of gravity of Z-axis and transfer axis matching; Easy chip disposal with direct chip discharging structure; Best-in-class rapid traverse rate of 50m/min (1969 ipm); Machining of the largest workpiece in its class; ATC design capable of attaching the largest tools in its class.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HS6300-8000%20II.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews
• Fanuc 31i-A Control
• Max. 10,000 rpm built-in spindle (also available in 6000 RPM H/T)
• Powerful 60.3 HP (45 kW) spindle motor
• Big Plus Dual Contact Spindle Taper #BBT 50
• Oil jacket spindle cooler
• 1,000 PSI through the spindle coolant
• Massive Meehanite cast iron bed
• Large Linear Roller Guide Ways
• Table clamping by large diameter Curvic coupling
• Double Pre-Tensioned Ball screws
• Fast 2,362 IPM (60m/min) X, Y and Z axis rapid traverse
• Cam Type Double Arm ATC 90 Tools
• Automatic pallet changer with (2) Tapped pallets
• Qualified edge locators
• Pallet clamping by 4-cone type pins
• Pallet rotation at pallet loading station
• Portable Manual Pulse Generator
• Program and data protection key switch
• Telescopic way covers
• Full enclosure splash guard
• Chip Conveyor (39.1” discharge height)
• Flood coolant with large separate coolant tank
• Work light
• 1 color tower signal light
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
