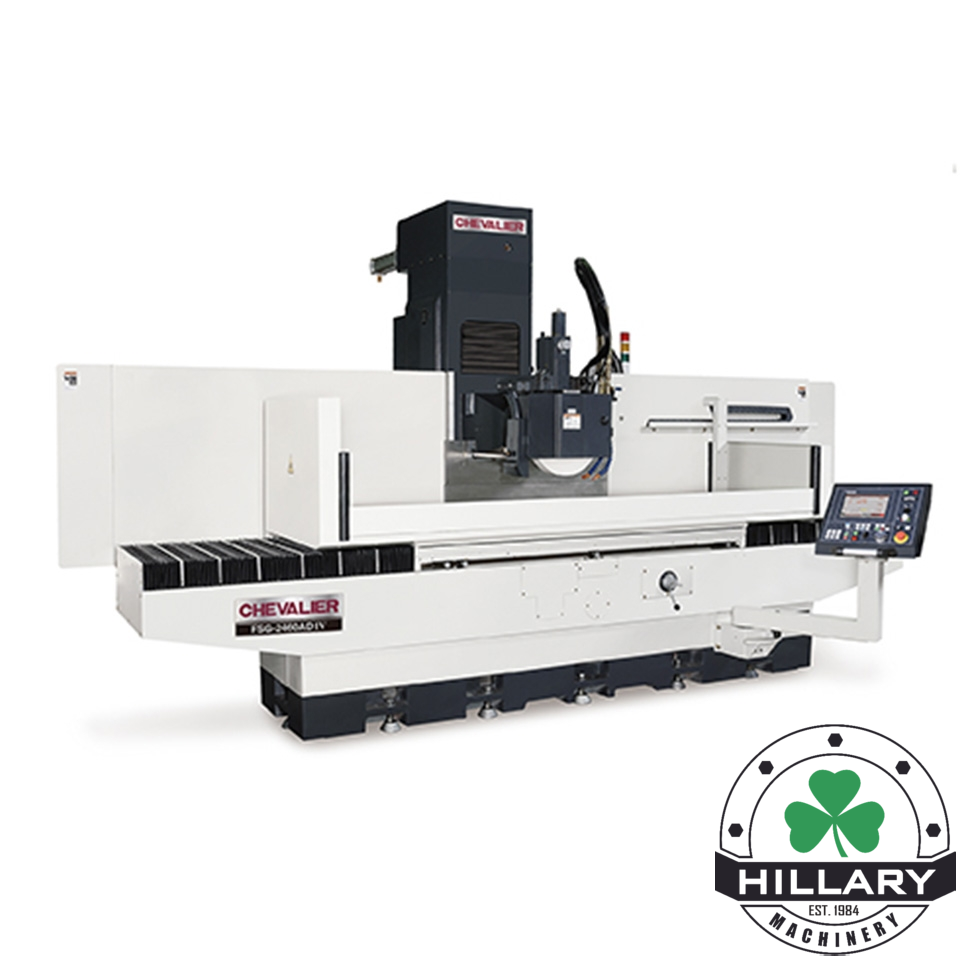

Chevalier FSG-2480ADIV Fully Automatic Precision Surface Grinder

Chevalier FSG-2480ADIV Fully Automatic Precision Surface Grinder

972-578-1515
sales@hillaryinc.com

Overview

Type:
Surface Grinders
Manufacturer:
CHEVALIER GRINDERS
Model:
FSG-2480ADIV
Status:
For Sale

Description

PLC touch screen 3 axes fully automatic surface and plunge grinding system. 10.4” TFT high resolution 65536 color control to ensure ease of operation. High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding Remove period. Wheel head will raise up to end, start and reference positions. Table parks at left or right side after cycle is completed. I/O diagnosis & alarm display. To achieve better accuracy, the number of free passes between down-feeds can be preset depending on work piece material Remove period

PDF
http://hillaryinc.net/chevalierpdf/chevalierFSG-2024ADIV.pdf

Table-L78.7"1,999 mm
Table-W23.6"599.44 mm
Grinding Wheel Dia.16"406.4 mm
Grinding Wheel Width3"76.2 mm
Horizontal/VerticalHorizontalHorizontal
OperationAutomaticAutomatic
Power15 hp11.2 kW
ControlCNC (iSurface)CNC (iSurface)
