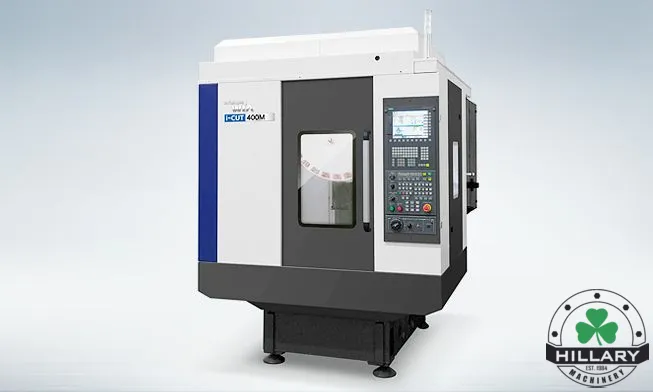

The i-CUT4000 drilling & tapping centers, designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-i-CUT4000-4500.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews
• Hyundai Wia Fanuc i Series

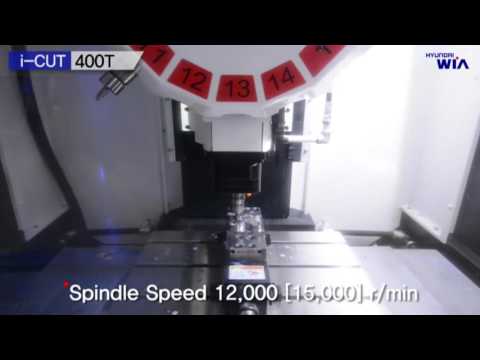

• 12,000 RPM
• Powerful 13kW (17.4 HP) direct driven spindle
• High precision spindle with double row angular contact ball bearings
• BBT #30 Spindle Taper
• Spindle orientation
• Spindle override
• Oil jacket spindle cooler
• 290 PSI through the spindle coolant.
• Massive Meehanite cast iron bed
• Double Pre-Tensioned Ball screws
• Fast 56m/min (2,205 IPM) X,Y and Z axis
• Rigid tapping
• Custom Macro (User Definable)

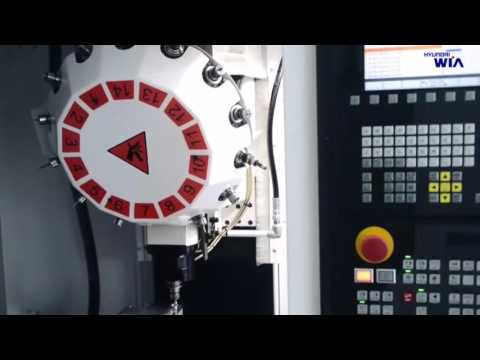

• Armless ATC 14 Tools
• Portable Manual Pulse Generator
• Program and data protection key switch
• Telescopic way covers
• Bed flushing coolant with large separate coolant tank
• Work light
• 3 color tower signal light
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
