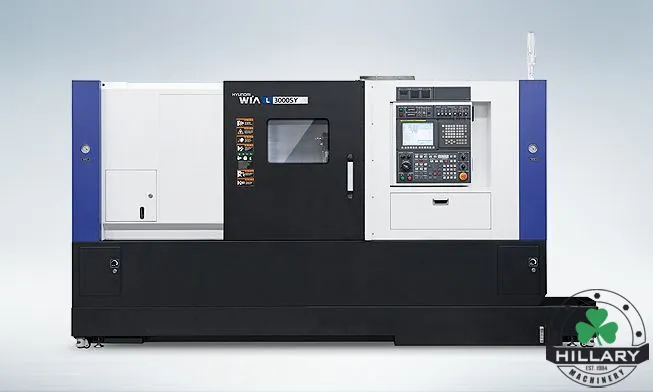

Hyundai Wia L3000SY 12" Chuck Y-Axis BOX WAY Turning Center with 8" Sub-Spindle Chuck Upgrade
Multi-Axis CNC LathesMSRP | $245,000.00 USD |
$199,900.00 USD |
The L3000SY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-L-Y%20Series.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews
• Hyundai Wia Fanuc i series - Smart Plus control
• Max. 3,000 rpm(Main) and 6,000 rpm(Sub) built-in spindle
• Powerful 50 HP (37 kW) main / 20 HP (15 kW) sub spindle motor
• Fast 1,181 IPM (30m/min) X, Z and ZB / 394 IPM (10m/min) Y axis rapid traverse
• Auto Tool Setter
• Parts catcher (Sub)
• Pneumatic part ejector in sub spindle
• 12 Station Turret
• Right Side Hinge Type Chip Conveyor (38” discharge height)
• 3 color tower signal
• LNS bar feeder interface
• Double Pre-Tensioned Ball screws
• Standard Tooling
CHUCK SIZE (in) | 12 |
BAR CAPACITY (in) | 4 |
TURNING DIAMETER | 16.5" |
TURNING LENGTH | 29.9" |
SWING (in) | 31.5" |
POWER | 50 hp |
RPM | 3,000 RPM |
SUB-SPINDLE | Yes |
TAILSTOCK | No |
Control | CNC (Fanuc) |
