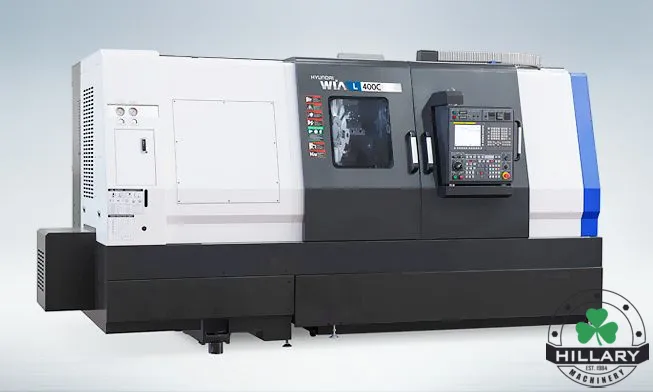

Hyundai Wia L4000 15" Chuck 2 Axis Box Way Geared Spindle Turning Center
2-Axis CNC LathesThe L4000 series (replaces L400C) heavy duty box way geared spindle turning centers are designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-L4000.pdf
MAX TURNING DIAMETER (in) | 22.4 |
CHUCK SIZE (in) | 15 |
BAR CAPACITY (in) | 4.6 |
MAX TURNING LENGTH (in) | 41.1 |
SWING OVER BED (in) | 31.5 |
TAILSTOCK | Yes |
SPINDLE SPEED (rpm) | 2000 |
SPINDLE NOSE | A2-11 |
SPINDLE MOTOR HP | 47 |
Control | CNC (Fanuc) |
