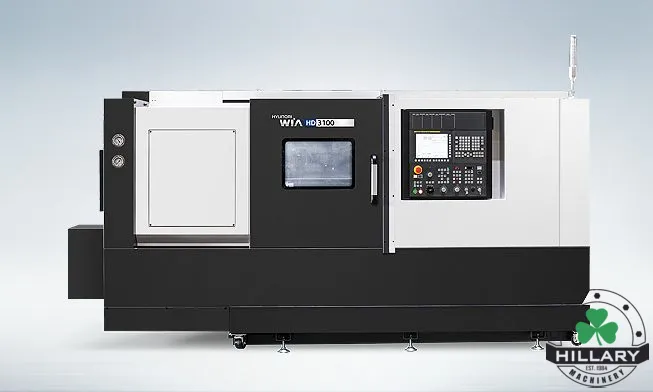

Hyundai-Wia HD3100M 12" Chuck Box Way 3-Axis Horizontal Turning Center with Live Tools
ConditionNew
New
Hyundai-Wia HD3100M 3-Axis CNC Lathe offers a 12" chuck, 16.5" max turning diameter, and 4" bar capacity. It features live tools, 945 IPM X, and 1,181 IPM Z axis speeds, with a 35 HP spindle motor at 2800 RPM and a programmable tailstock for precision.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD2600-3100%20Series.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews
• Hyundai Wia Fanuc i control
• 2,800 RPM spindle
• Powerful 35HP (26kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X, and 1,181 IPM (30m/min) Z axis
• Manual Tool Setter
• Programmable tail stock
• MT #5 Live Center
• Parts Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 53 Gal (200 ℓ) Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 8 Gal(30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts: and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
Hyundai-Wia HD3100M 3-Axis CNC Lathe offers a 12" chuck, 16.5" max turning diameter, and 4" bar capacity. It features live tools, 945 IPM X, and 1,181 IPM Z axis speeds, with a 35 HP spindle motor at 2800 RPM and a programmable tailstock for precision.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD2600-3100%20Series.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews
• Hyundai Wia Fanuc i control
• 2,800 RPM spindle
• Powerful 35HP (26kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X, and 1,181 IPM (30m/min) Z axis
• Manual Tool Setter
• Programmable tail stock
• MT #5 Live Center
• Parts Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 53 Gal (200 ℓ) Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 8 Gal(30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts: and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
Imperial
| Control | CNC (Fanuc) |
| CHUCK SIZE (in) | 12 |
| MAX TURNING DIAMETER (in) | 16.0 |
| BAR CAPACITY (in) | 4 |
| MAX TURNING LENGTH (in) | 29.0 |
| SWING OVER BED (in) | 29.0 |
| SPINDLE MOTOR | 35 |
| SPINDLE SPEED | 2800 |
| SPINDLE NOSE | A2-11 |
| TAILSTOCK | Yes |
