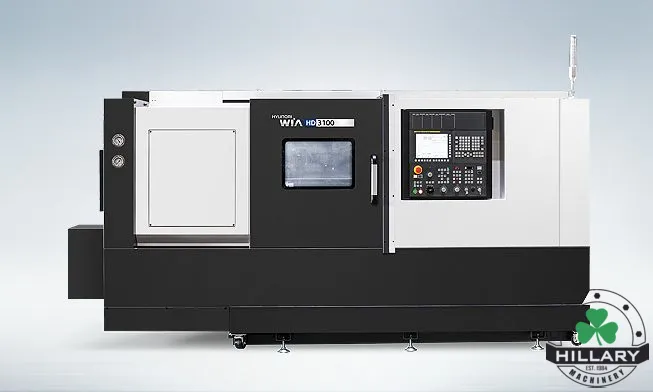

Hyundai-Wia HD3100LM 12" Chuck Box Way Long Bed 3-Axis Horizontal Turning Center with Live Tools
ConditionNew
New
The HYUNDAI WIA HD3100LM is a long-bed live-tool CNC turning center engineered for heavy-duty precision machining. Its box guideways provide rigidity for demanding cutting applications, while live tooling helps consolidate turning and secondary machining operations in a single setup.
• Hyundai Wia Fanuc i control
• 2,800 RPM spindle
• Powerful 35HP (26kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X, and 1,181 IPM (30m/min) Z axis
• Manual Tool Setter
• Programmable tail stock
• MT #5 Live Center
• Parts Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 53 Gal (200 ℓ) / [58 Gal (220 ℓ) for HD3100LM] Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 8 Gal(30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts: and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
The HYUNDAI WIA HD3100LM is a long-bed live-tool CNC turning center engineered for heavy-duty precision machining. Its box guideways provide rigidity for demanding cutting applications, while live tooling helps consolidate turning and secondary machining operations in a single setup.
• Hyundai Wia Fanuc i control
• 2,800 RPM spindle
• Powerful 35HP (26kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X, and 1,181 IPM (30m/min) Z axis
• Manual Tool Setter
• Programmable tail stock
• MT #5 Live Center
• Parts Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 53 Gal (200 ℓ) / [58 Gal (220 ℓ) for HD3100LM] Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 8 Gal(30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts: and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
Imperial
| Control | CNC (Fanuc) |
| CHUCK SIZE (in) | 12 |
| MAX TURNING DIAMETER (in) | 16.0 |
| BAR CAPACITY (in) | 4 |
| MAX TURNING LENGTH (in) | 49.0 |
| SWING OVER BED (in) | 29.0 |
| SPINDLE MOTOR | 35 |
| SPINDLE SPEED | 2800 |
| SPINDLE NOSE | A2-11 |
| TAILSTOCK | Yes |
