HYUNDAI WIA HD2600 10" Chuck 2 Axis Box Way Turning Center
ConditionNew
New
HYUNDAI WIA HD2600, new 2-axis CNC lathe with 10" chuck, boasts a 35HP spindle motor, 18.1" max turning diameter, and 25.9" max turning length. Equipped with Fanuc i control, 12-station turret, and high-pressure coolant system for optimal performance.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD2600-3100%20Series.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews

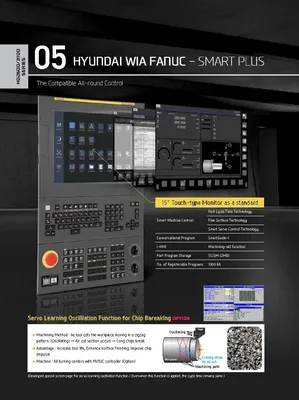

• Hyundai Wia Fanuc i control

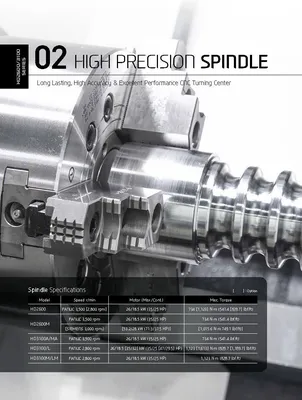

• 3,500 RPM spindle
• Powerful 35HP (26kW) spindle motor
• Spindle orientation

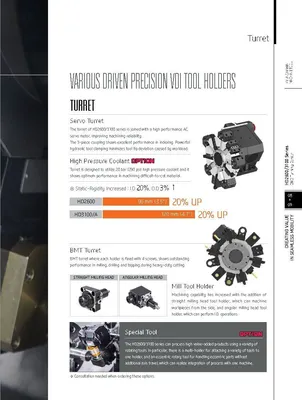

• 12 Station Turret
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X and 1,181 IPM (30m/min) Z axis rapid traverse
• Manual Tool Setter

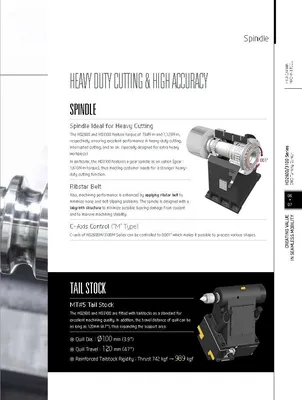

• Programmable tail stock
• MT #5 Live Center
• Parts Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light

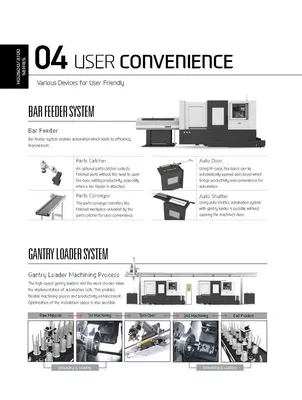

• LNS bar feeder interface
• Rigid tapping
• 48 Gal (180 ℓ) / [53 Gal (200 ℓ)] Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 6.3Gal(24 ℓ) [8Gal(30 ℓ)] Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
HYUNDAI WIA HD2600, new 2-axis CNC lathe with 10" chuck, boasts a 35HP spindle motor, 18.1" max turning diameter, and 25.9" max turning length. Equipped with Fanuc i control, 12-station turret, and high-pressure coolant system for optimal performance.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD2600-3100%20Series.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews
• Hyundai Wia Fanuc i control
• 3,500 RPM spindle
• Powerful 35HP (26kW) spindle motor
• Spindle orientation
• 12 Station Turret
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X and 1,181 IPM (30m/min) Z axis rapid traverse
• Manual Tool Setter
• Programmable tail stock
• MT #5 Live Center
• Parts Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 48 Gal (180 ℓ) / [53 Gal (200 ℓ)] Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 6.3Gal(24 ℓ) [8Gal(30 ℓ)] Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
Imperial
| Control | CNC (Fanuc) |
| CHUCK SIZE (in) | 10 |
| MAX TURNING DIAMETER (in) | 18.1 |
| BAR CAPACITY (in) | 3.2 |
| MAX TURNING LENGTH (in) | 25.9 |
| SWING OVER BED (in) | 24.8 |
| TAILSTOCK | Yes |
| SPINDLE SPEED (rpm) | 3500 |
| SPINDLE NOSE | A2-8 |
| SPINDLE MOTOR HP | 35 |
