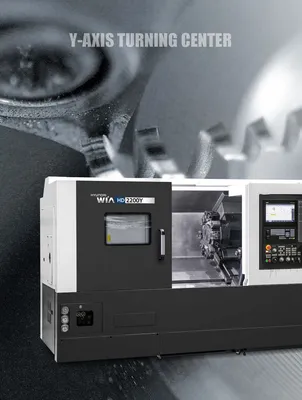

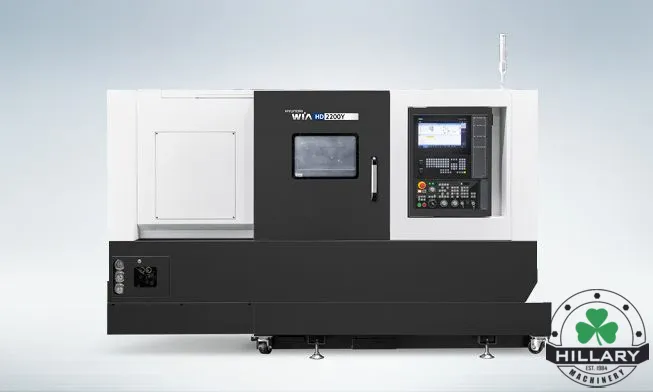

Hyundai-Wia HD2200SY 8" Chuck Y-Axis Turning Center with 5" Sub-Spindle

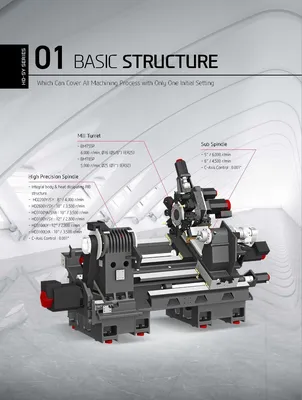

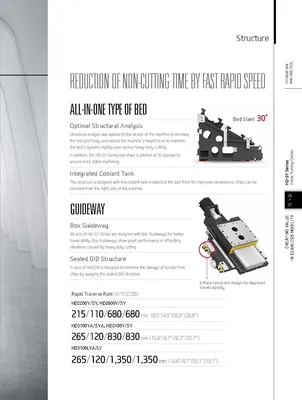

Multi-Axis CNC LathesThe HD2200SY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD-SY%20Series%20ENG.pdf

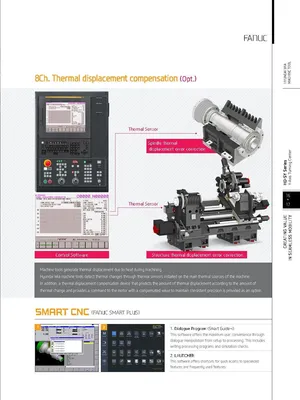

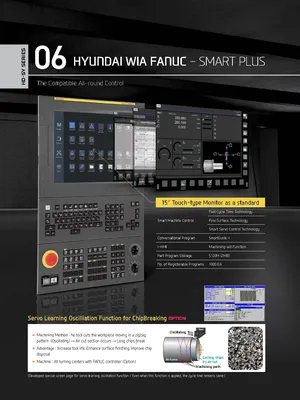

• Hyundai Wia Fanuc - Smart Plus control

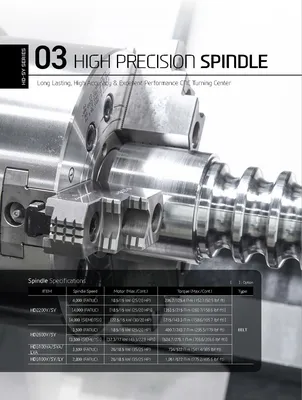

• Max. 4,000 RPM Belt driven spindle [3,500rpm]
• Powerful 24.8 HP (18.5 kW) spindle motor
• Spindle orientation
• 87 PSI(6bar) multi-stage coolant pump
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X&ZB, 1,181 IPM (30m/min) Z and 394 IPM (10m/min) Y axis rapid speed
• Manual Tool Setter

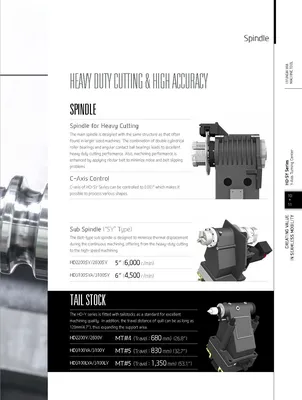

• Programmable tail stock
• MT #4 Live Center

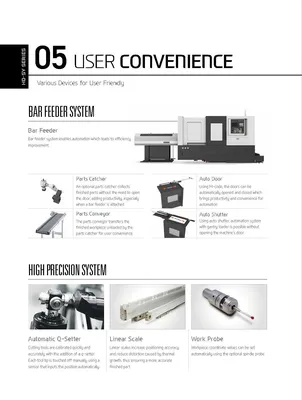

• Auto Part Catcher

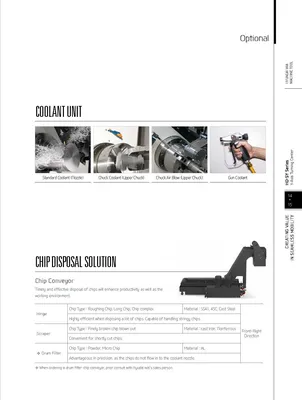

• Right Side Hinge Type Chip Conveyor
• 3 color tower signal
• LNS bar feeder interface
• 52.8 gal (200 ℓ) Coolant Tank
• Standard Hyd. Unit - 35Bar (508 psi) / 7.9 gal (30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
CHUCK SIZE (in) | 8 |
BAR CAPACITY (in) | 2.6 |
TURNING DIAMETER | 11.8" |
TURNING LENGTH | 25.6" |
SWING (in) | 32.3" |
POWER | 25 hp |
RPM | 4,000 RPM |
SUB-SPINDLE | Yes |
TAILSTOCK | No |
Control | CNC (Fanuc) |
MSRP | $165,576.00 USD |
$152,627.00 USD |
