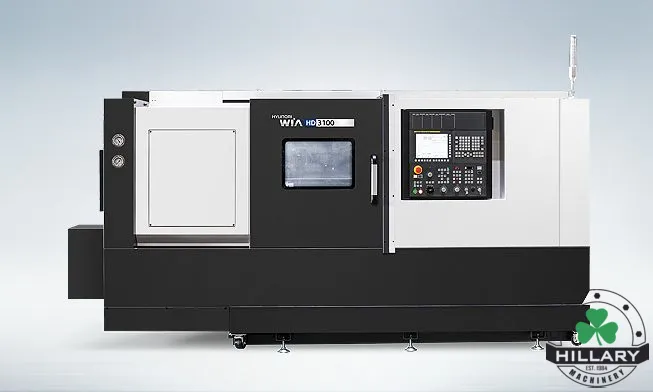

Hyundai-Wia HD3100 High Speed Horizontal Turning Center.

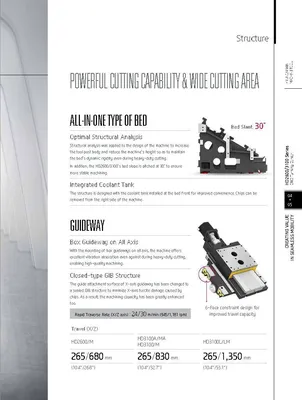

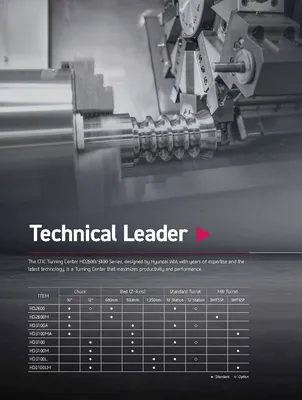

2-Axis CNC LathesThe CNC Turning Center HD3100 Series, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance. All axes of HD3100/L are designed with Box Guideway and providing more heavy duty cutting performance.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD2600-3100%20Series.pdf

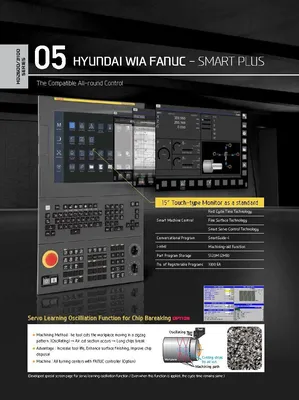

• Hyundai Wia Fanuc i control

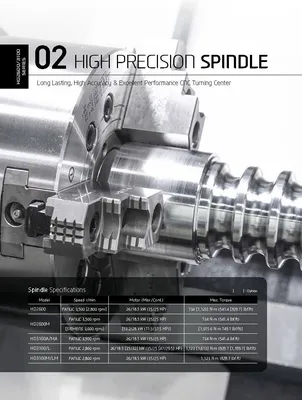

• 2,800 RPM spindle
• Powerful 35HP (26kW) spindle motor
• Spindle orientation

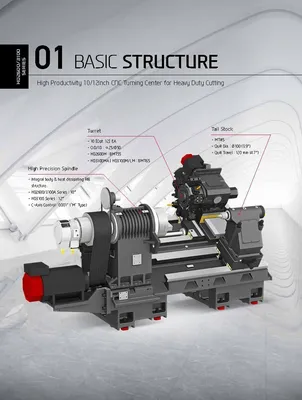

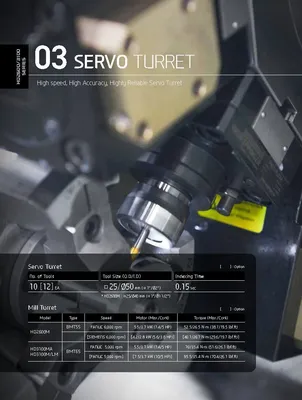

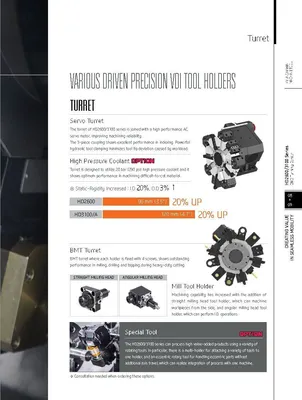

• 12 Station turret
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X and 1,181 IPM (30m/min) Z axis rapid treverse
• Manual Tool Setter
• Programmable tail stock
• MT #5 Live Center
• Parts Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light

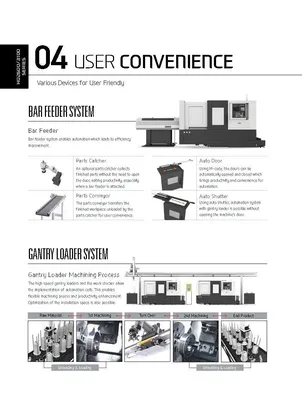

• LNS bar feeder interface
• Rigid tapping
• 53 Gal (200 ℓ) / [58 Gal (220 ℓ)] Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 8 Gal(30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
CHUCK SIZE (in) | 12 |
BAR CAPACITY (in) | 4 |
MAX TURNING DIAMETER (in) | 19.7 |
MAX TURNING LENGTH (in) | 30.7 |
SWING OVER BED (in) | 29.5 |
TAILSTOCK | Yes |
SPINDLE SPEED (rpm) | 2800 |
SPINDLE NOSE | A2-11 |
SPINDLE MOTOR HP | 35 |
Control | CNC (Fanuc) |
MSRP | $141,132.00 USD |
$132,000.00 USD |
