Overview
Type:
Tool Room Mills
Manufacturer:
SOUTHWESTERN INDUSTRIES
Model:
VMC2 (2OP)
Status:
For Sale
Description

The TRAK VMC2 (formerly the 2OP) for Second Operation Work or Stand-Alone Applications fits almost anywhere, you can have the same operator run the TRAK® VMC2 along with another machine in the same work cell. Training takes less than half a day, so everyone in your shop can learn to use it. The TRAK 2op allows a second spindle to be brought quickly and easily to operators idled by the cycle time of their primary machines so that both first and second operations can be run simultaneously. This arrangement makes practical, for the first time, the creation of work cells in high-mix, low volume shops. The result — part cycle time is reduced and output is increased at no additional cost in labor.

Specifications
TaperBT30
Travel-Long14"
Travel-Cross12"
Table-L18"
Table-W15"
Power3 hp
RPM10,000 RPM
ControlCNC (ProtoTRAK RMX CNC)
Dimensions30.5 x 52 x 101”
Weight3175 lbs
Equipped With

ProtoTRAK System Hardware: • ProtoTRAK RMX CNC • Three-axis CNC and DRO • 5.7” LCD screen • 2 USB 2.0 ports • Built in LED status lights • Uncluttered front panel • Beacon light • Spindle speed override • Coolant pump • Ethernet port • 15 gallon coolant tank • Air blast Software Features: • Clear, uncluttered interface • Prompted data inputs • Plain language - no codes • Soft keys change with context • Windows® operating system • Inch/mm selectable • Rigid tapping • Reference to ball lock locations • Absolute home location • Canned cycles: pockets, profiles, bolt hole patterns, etc. • Indexer compatible • Toolroom vs Production ops

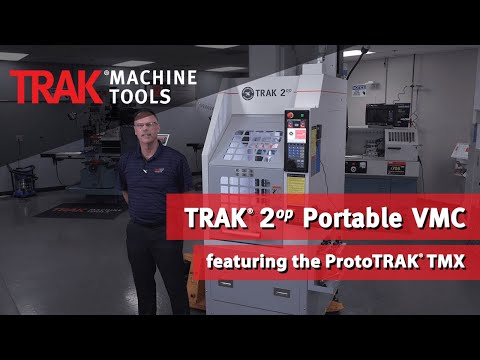

TRAK VMC2 (2OP) Portable Vertical Machining Center for Second Operation

TRAK VMC2 (2OP) Portable Vertical Machining Center for Second Operation
Tool Room Mills
