New
For Automated Machine Tending, Deburring, Polishing, Assembly, Engraving, Measurement, Testing & SO MUCH MORE!
Offered with Fanuc CRX-20iA/L COBOT (or Optional Hanwha HCR-14) as a DIY or fully turnkeyed with application engineering, installation and integration to a new or your pre-existing CNC(s). Holds hundreds and hundreds of billets for extended unmanned operation.

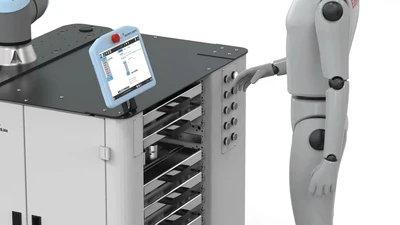

EcoTender Profeeder X5 is the perfect solution for manufacturers with little to no robotic experience with a simple-to-use programming interface with simple drag and drop technology on a touchscreen pendant.
EcoTender Profeeder X5 has 5-550x350mm trays with pneumatic locks,120kg capacity per tray, 2.5mm deflection per tray at full capacity and a max part height of 160mm.

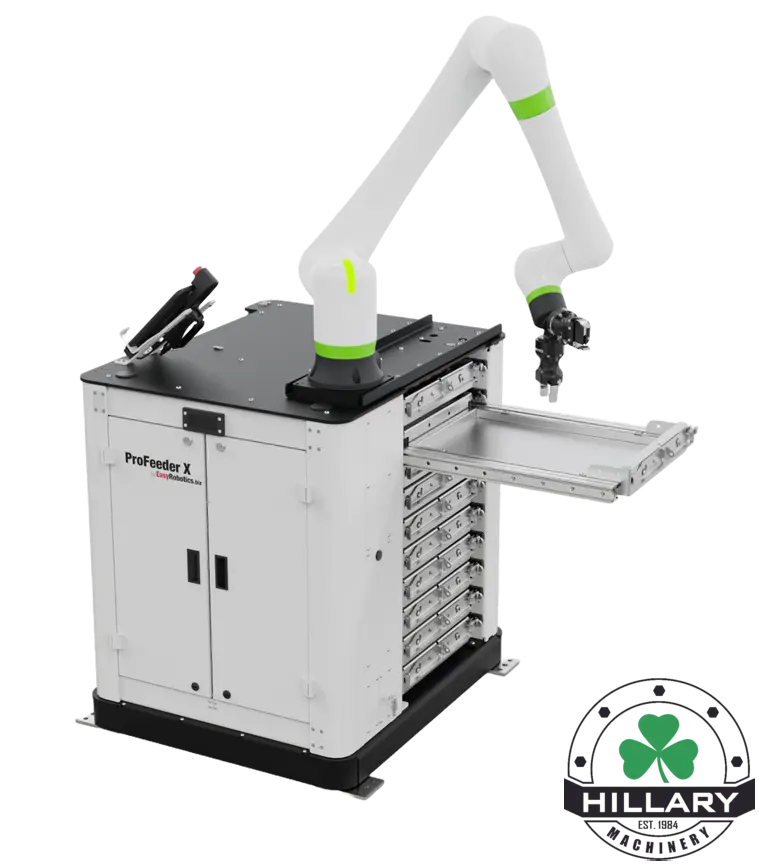

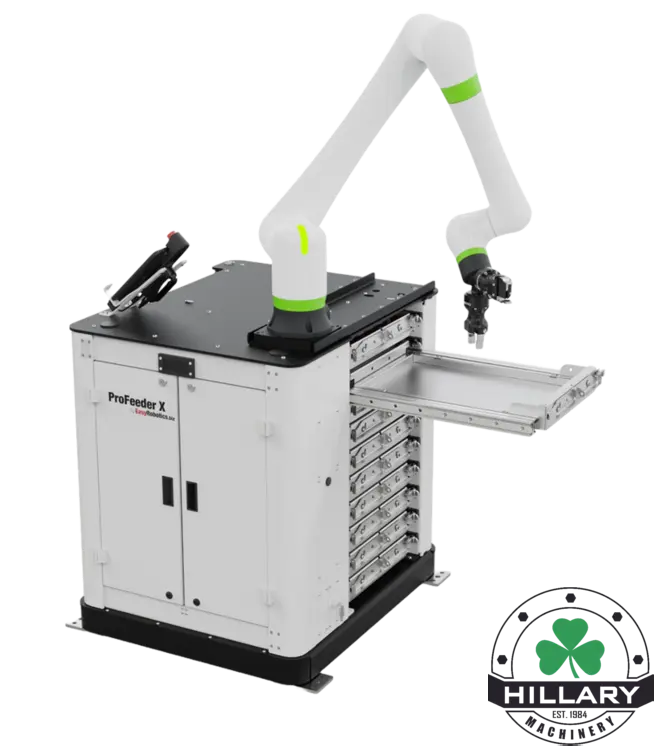

10 tray system (optional) shown
Plus, it can be moved around your facility with a simple pallet jack.
H: 1050 mm, W: 980, L: 920, Wt: 415 kg, 5x 550x350mm tray area, T-Pad bracket, Controller compartment, 2,5mm deflection at 120kg/tray, Max part height 160mm
