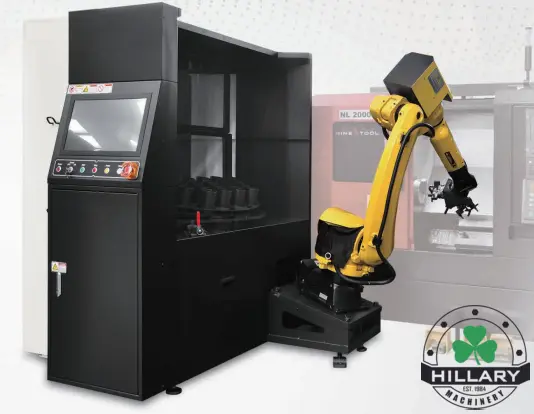

RoboTech MT Series CNC Machine Tending System with Hyundai Wia HH020 Industrial Robot & Smart EZ Controller
$149,900.00 USD
$99,900.00 USD
New
RoboTech MT Series CNC Machine Tending System from Hillary Machinery is a flexible easy to learn and operate efficient and reliable advanced machine tending system. Advanced RoboTech technology ensures high performance and precision. Enhance your production line with this state-of-the-art system.
For new and pre-existing CNC's
Multiple robot choices to choose from Fanuc, Hyundai Robotics and Universal Robotics with multiple reach and payload capacities to fit your round, square, or rectangular work-piece applications.
Control Software Smart EZ from RoboTech
Number of Pallet 2
Power supply (KVA) 5KVA
Pneumatic pressure (bar) 5bar
Robot (Standard Choices) Fanuc M20iD/25 (25Kg Payload)
Fanuc M20iD/35 (35Kg Payload)
Hyundai Robot HH020 (20Kg Payload)
Universal Robot UR20 (20Kg Payload)
Robot Gripper (Standard) Dual 3-Jaw gripper (8.6kg)
Robot Gripper Control Pneumatic
Workpiece diameter (min/max) 24mm - 160mm
Workpiece length (min/max) 20mm - 400mm
Pallet Weight capacity (max) 500Kg
Pallet capacity ø30mm (pieces) 145
ø50mm (pieces) 61
ø75mm (pieces) 33
ø100mm (pieces) 22
ø160mm (pieces) 7
Safety Door Switch Standard (Scanner Type : Optional)
Safety fence Option
