EcoTender Profeeder X5 Robotic Tending System with Hanwha HCR-14 Collaborative Robot 30lb Max Payload

Description

For Automated Machine Tending, Deburring, Polishing, Assembly, Engraving, Measurement, Testing & SO MUCH MORE!

Offered with Hanhwa HCR-14 COBOT (or Optional Fanuc CRX-10iA/L or 20iA/L) as a DIY or fully turnkeyed with application engineering, installation and integration to a new or your pre-existing CNC(s). Holds hundreds and hundreds of billets for extended unmanned operation.

EcoTender Profeeder X5 is the perfect solution for manufacturers with little to no robotic experience with a simple-to-use programming interface with simple drag and drop technology on a touchscreen pendant.

EcoTender Profeeder X5 has 5-550x350mm trays with pneumatic locks,120kg capacity per tray, 2.5mm deflection per tray at full capacity and a max part height of 160mm.

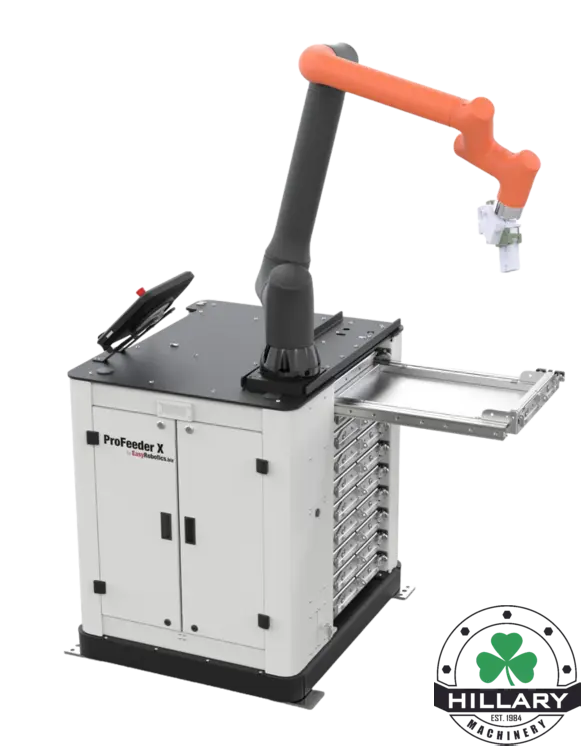

10 tray system (optional) shown

Plus, it can be moved around your facility with a simple pallet jack.

H: 1050 mm, W: 980, L: 920, Wt: 415 kg, 5x 550x350mm tray area, T-Pad bracket, Controller compartment, 2,5mm deflection at 120kg/tray, Max part height 160mm
