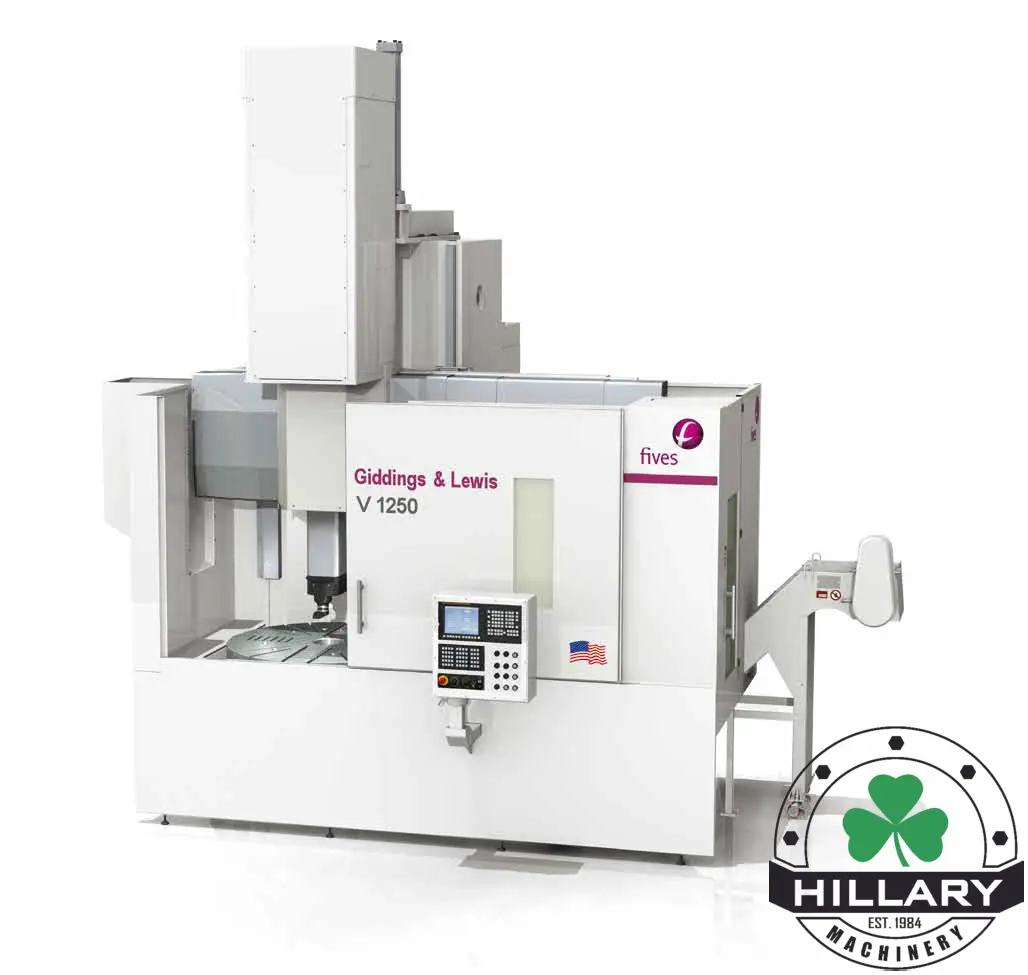

FIVES GIDDINGS & LEWIS V 1250 RAM TYPE VERTICAL TURNING CENTER
Vertical Turning LathesGiddings & Lewis V Series vertical lathes, with tables from 800 to 2500 mm, are a productive addition to any shop floor. Carrying the Giddings & Lewis tradition of robust construction and precision, the V Series is designed with industry-leading functionality and reliability at an affordable price. No other vertical turning center includes an infinitely-adjustable cross rail and hydrostatic ram as standard or offers a more cost-effective tooling system.
V Series advantages
-Hydrostatic ram adds rigidity for heavy or extended ram machining, better surface finishes and greater accuracy
-Precision dual-scale, infinitely-adjustable cross rail handles a wide range of parts
-Giddings & Lewis VLock, a stiff tooling interface, uses standard modular tools reducing tooling costs and
optimizing cutting
-Rigid, cast-iron base construction supports heavy loads and high cutting forces
-Floor-level installation eliminates need for special foundations
-Compact footprint minimizes valuable production space
Maximum Clearance Under Ram is 66.9"
Additional options
-Live spindle
-Right angle live spindle
-Tool and part probes
CHUCK SIZE (in) | 49.2 |
SWING (in) | 65" |
TURNING DIAMETER (in) | 65" |
MACHINING LENGTH (in) | 55.1" |
MAX RPM | 400 RPM |
POWER | 60 hp |
Control | CNC (Fanuc or Siemens) |
