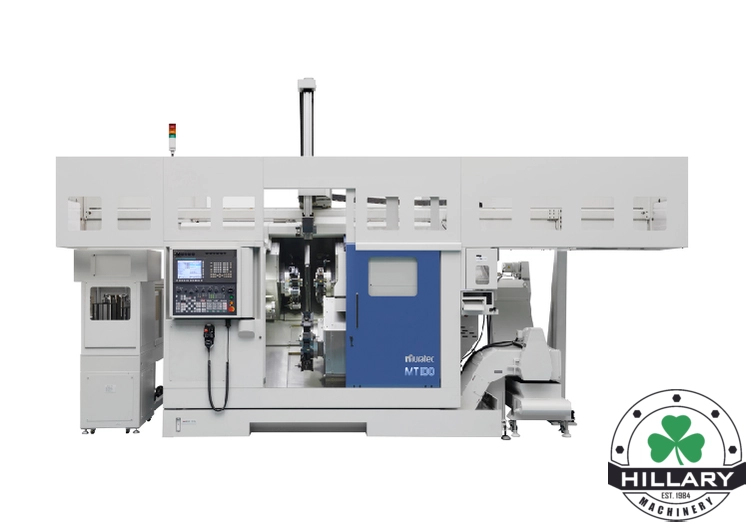

MURATEC MT100 TWIN OPPOSING SPINDLES WITH LIVE TOOLS Y-AXIS & GANTRY LOADER
ConditionNew
New
FULL TURN-KEY SOLUTION - The MT100 is a compact, high-quality turning center with multi-functional capabilities. With a built-in Y-axis, the MT100 allows for greater precision on complex parts and is designed so that each turret can serve either spindle at any time.
MT100 Machine Specs & Technical Data
Maximum Chuck Size 6 in
Number of Turret Stations T2:15 x 2 ( Upper and Lower ) , T3:15 x 3 ( Upper , Lower and right each)
Maximum Spindle Speed 5000 rpm
Spindle Drive Motor 11 kW/30 min
Total Machine Weight (Approx.) 17637 lb
Maximum Bar Size Up to Φ51 mm x 620 mm
Live Tool Drive Motor 2.2 kW
Live Tool Maximum Speed 6000 rpm
Gantry Loader Workpiece Handling Capacity ( 3 Jaw Type) Φ120 mm x 100 mm , up to 5.0kg/piece
Gantry Loader Workpiece Handling Capacity ( 2 Jaw Type) Φ70 mm x 200 mm , up to 3.0kg/piece
Spindle Nose Size JIS A2-5
Spec. of Axes X-axis 24 m/min | Z-axis 40 m/min | Y-axis 12 m/min
