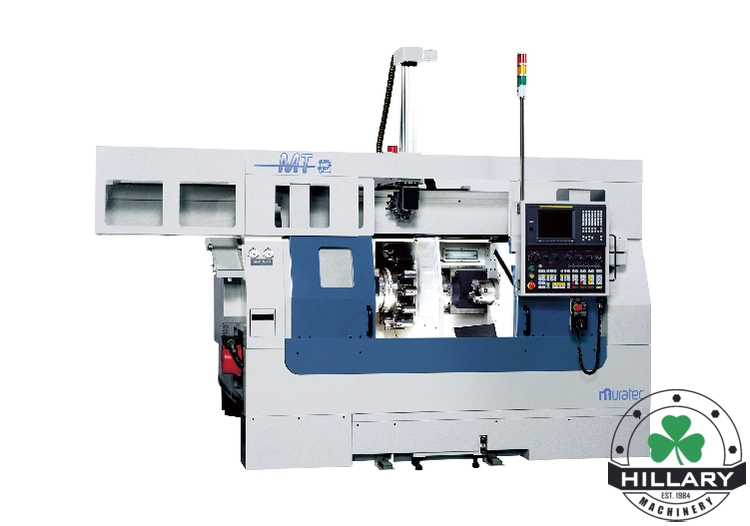

FULL TURN-KEY SOLUTION - With the power of two machines in one, the MT12 is equipped with multiple cutting stations and high-precision synchronization, allowing it to turn complex parts in a fraction of the time. This twin opposing spindle machine is an optimal solution for complex parts such as surgical parts, pumps and valves.
MT12 Machine Specs & Technical Data
Maximum Chuck Size 8 in
Number of Turret Stations 15 x 2
Maximum Spindle Speed 4500 rpm
Spindle Drive Motor 11 kW/30 min
Total Machine Weight (Approx.) 12346 lb
Maximum Bar Size Up to Φ51 mm x 800 mm
Live Tool Drive Motor 2.7 kW
Live Tool Maximum Speed 4000 rpm
Gantry Loader Workpiece Handling Capacity Φ120 mm x 100 mm , up to 3.0kg/piece
Spindle Nose Size JIS A2-5
Spec. of Axes X-axis 24 m/min | Z1-axis 24 m/min | Z2-axis 24 m/min
