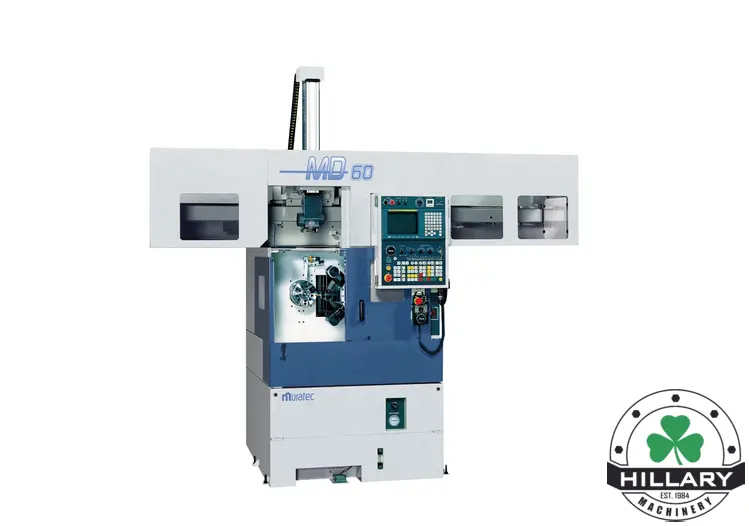

MURATEC MD60 SINGLE SPINDLE WITH LIVE TOOLS & GANTRY LOADER
ConditionNew
New
FULL TURN-KEY SOLUTION - The MD60 single spindle CNC turning center is the ultimate solution for multi-processing turning. A top-performer of our MD Series, this machine features live-tooling capabilities, including milling and drilling, and can perform both low- and high-volume tooling projects.
MD60 Machine Specs & Technical Data
Maximum Chuck Size 8 in
Number of Turret Stations 10 x 2
Maximum Spindle Speed 4500 rpm
Spindle Drive Motor 11 kW/30 min
Total Machine Weight (Approx.) 5291 lb
Live Tool Drive Motor 2.5 kW
Live Tool Maximum Speed 4000 rpm
Gantry Loader Workpiece Handling Capacity Φ120 mm x 80 mm , up to 3.0kg/piece
Spindle Nose Size JIS A2-5
Spec. of Axes X-axis 24 m/min | Z-axis 24 m/min
