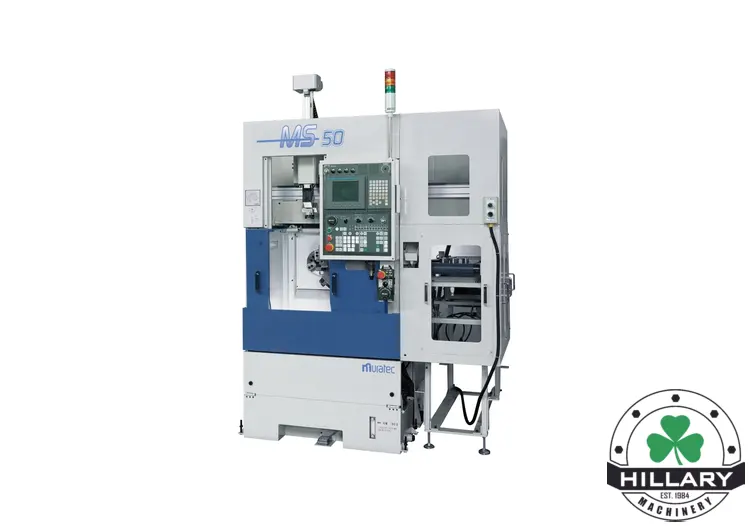

The single spindle CNC turning center, MS50G, delivers exceptional rigidity, high precision processing, and greater productivity. With a high-speed loader and versatile automation, this machine features quick load/unload times at a fraction of the usual production time.
MS50 Machine Specs & Technical Data
Maximum Chuck Size 6 in
Number of Turret Stations 8 STA
Maximum Spindle Speed 4500 rpm
Spindle Drive Motor 5.5 kW/30 min
Total Machine Weight (Approx.) 4850 lb
Gantry Loader Workpiece Handling Capacity Φ60 mm x 40 mm , up to 0.7kg/piece
Spindle Nose Size JIS A2-5
Spec. of Axes X-axis 24 m/min | Z-axis 24 m/min
