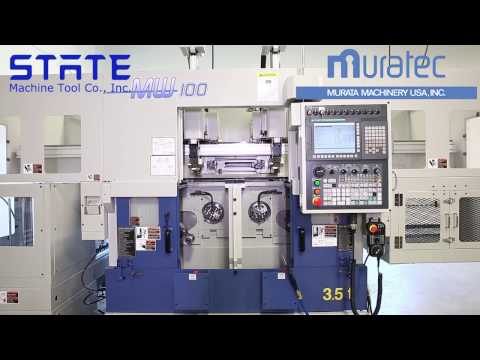

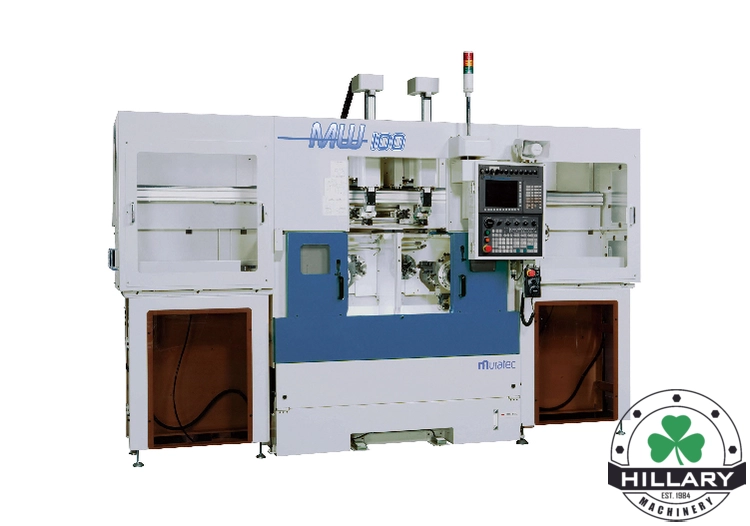

MURATEC MW100 TWIN SPINDLE WITH GANTRY LOADER
ConditionNew
New
FULL TURN-KEY SOLUTION Produce parts in as little as 16 seconds with the MW100. The MW100 is a twin spindle turning center that improves productivity with exceptional rigidity and high precision processing. This machine is a great fit for customers seeking to save space in production setup. Find out how the MW100 can work for you!
MW100 Machine Specs & Technical Data
Maximum Chuck Size 6 in
Number of Turret Stations 8 x 2 *No option
Maximum Spindle Speed 4500 rpm
Spindle Drive Motor 5.5 kW/30 min *No option
Total Machine Weight (Approx.) 7716 lb
Gantry Loader Workpiece
Handling Capacity Φ60 mm x 40 mm , up to 0.7kg/piece
Spindle Nose Size JIS A2-5
Spec. of Axes X-axis 24 m/min | Z-axis 24 m/min
