New

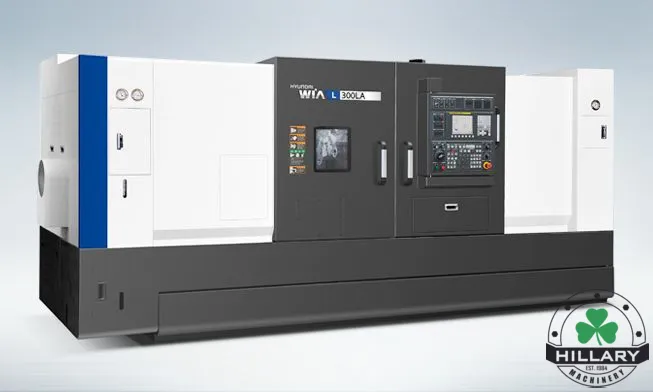

HYUNDAI WIA L300C 12" Chuck 2 Axis Box Way Turning Center
2-Axis CNC LathesThe Hyundai Wia L300 Series box way turning centers are designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-L300.pdf
CHUCK SIZE (in) | 12 |
BAR CAPACITY (in) | 3.5 |
MAX TURNING DIAMETER (in) | 22 |
MAX TURNING LENGTH (in) | 28.3 |
SWING OVER BED (in) | 29.5 |
TAILSTOCK | Yes |
SPINDLE SPEED (rpm) | 3000 |
SPINDLE NOSE | A2-8 |
SPINDLE MOTOR HP | 35 |
Control | CNC (Fanuc) |
