TRAK TMC5 TOOL ROOM VERTICAL MACHINING CENTER
ConditionNew
New

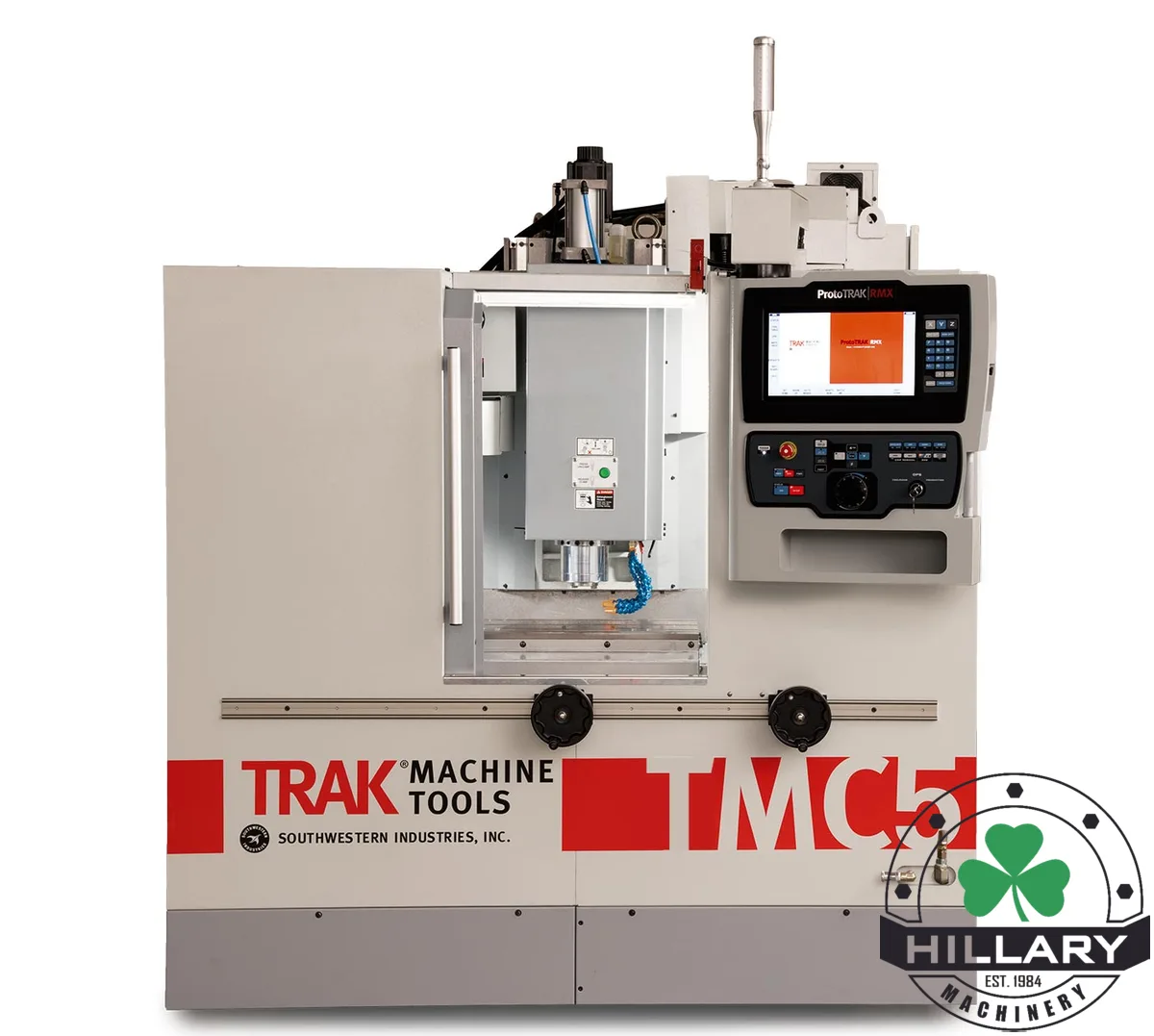

Introducing the World's First Toolroom VMC featuring the New ProtoTRAK RMX. It's a full featured 3-axis machining center when you need to run low volume production. The amazing new ProtoTRAK® RMX CNC delivers a powerful easy-to-use interface. With the flip of a switch, you enter into Toolroom Ops™. Now your VMC works like our popular TRAK® DPM, only with an enclosure that keeps chips and coolant contained. Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.
Machine Specifications
• Table Size – 27.56” x 15.75”
• T-slots (number x width x pitch) – 3 x .709” x 3.937”
• Travel (X, Y, Z axis) w/ Soft Limits – 20″ x 16″ x 20″
• Spindle Taper – 40 Taper
• Spindle Speed Range (RPM) – 50 – 8,000 RPM
• Spindle Nose Diameter – 3”
• Tool Clamping Force (90 psi) – 1,500 lbs
• Tool Holder Type – CAT 40 or BT 40
• ATC Tool Capacity – 16
• Maximum Tool Weight (incl. holder) – 15 lbs
• Maximum Tool Diameter – 3.14”
• Carousel Speed – .8 sec from station to station
• Tool Selection System – bi-directional/shortest path
• Spindle Motor HP (peak) – 15 HP
• Spindle Motor HP (continuous) – 10 HP
• Power Requirements (standard) – 208V (200-240V is acceptable), 3P, 67.3A
• Power Requirements (optional) – 480V w/ transformer option (432-528V is acceptable), 3P, 36A
• Maximum Weight of Workpiece – 1,000 lbs
• Height of Table from Bottom of Bed*** – 38”
• Min. Spindle Nose to Table Distance**** – 3.5”
• Max. Spindle Nose to Table Distance**** – 23.5”
• Distance of Tool Carousel to Table – 18”
• Spindle Center to Spindle Head Casting Face – 16.50”
• Min. Machine Height*** – 90”
• Max. Machine Height (head all the way up)*** – 106.50”
• Overall Width of Machine (w/ side doors open, auger chute, and chip container in place) – 159”
• Overall Length of Machine (w/ electrical cabinet fully open 180°) – 146”
• Footprint of Machine (Coolant Tank in Place) (w x l) – 85” x 129.25”
• Footprint of Machine (Coolant Tank in Place & Optional Auger Motor Installed) (w x l) – 92” x 129.25”
• Weight Net – 7,260 lbs.
• Weight Ship – 7,610 lbs.
• Rapid Traverse X, Y, Z – 400 IPM in Toolroom Ops, 1,000 IPM in Production Ops
• Coolant Capacity – 56 gal
• Coolant Pump & Wash Power – 750 Watt
• Air Pressure – 90 PSI 2.5 CFM, or 18 at 90 PSI SCFM
• Air Quality – Air dried/water separator upstream of VMC
• Lubrication Pump Capacity – 2 liter
