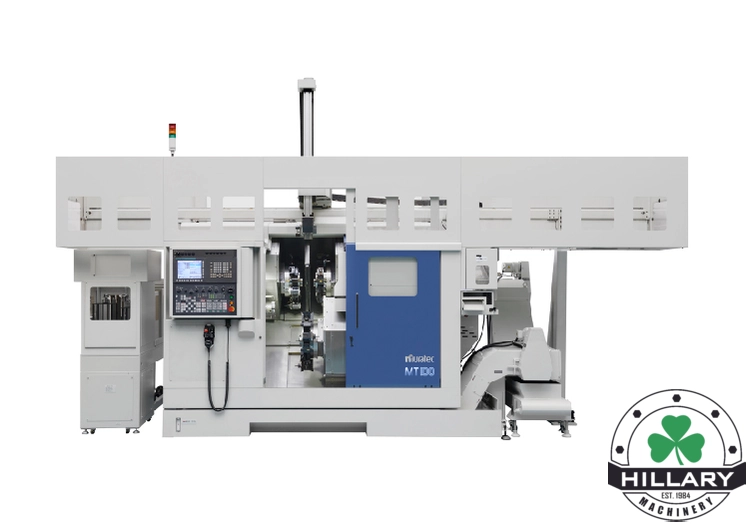

MURATEC MT100 TWIN SPINDLE w/ 2 (or 3) TURRETS Y-AXIS ON ALL TURRETS & OPTIONAL GANTRY LOADER

972-578-1515

sales@hillaryinc.com

Cantidad

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery (1)

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery (2)

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery (3)

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery (4)

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery (5)

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery (6)

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery (7)

MURATEC MURATA MT100 Multi-Axis CNC Lathes | Hillary Machinery

Nuevo

Descripción general

Tipo:

Multi-Axis CNC Lathes

Fabricante:

MURATEC MURATA

Modelo:

MT100

Descripción

FULL TURN-KEY SOLUTION - The MT100 is a compact, high-quality turning center with multi-functional capabilities. With a built-in Y-axis, the MT100 allows for greater precision on complex parts and is designed so that each turret can serve either spindle at any time.

PDF http://hillaryinc.net/Muratec/MT100-MT200-E.pdf

Especificación

ImperialMétrico

Control	CNC (Fanuc)	CNC (Fanuc)
CHUCK SIZE (in)	6	6
BAR CAPACITY (in)	2	2
TURNING DIAMETER	8.66"	219.96 mm
TURNING LENGTH	24.4"	619.76 mm
SWING (in)	7.48"	189.99 mm
POWER	14.8 hp	11 kW
RPM	5,000 RPM	5,000 RPM
SUB-SPINDLE	Yes	Yes
TAILSTOCK	No	No

MURATEC MT100 TWIN SPINDLE w/ 2 (or 3) TURRETS Y-AXIS ON ALL TURRETS & OPTIONAL GANTRY LOADER
