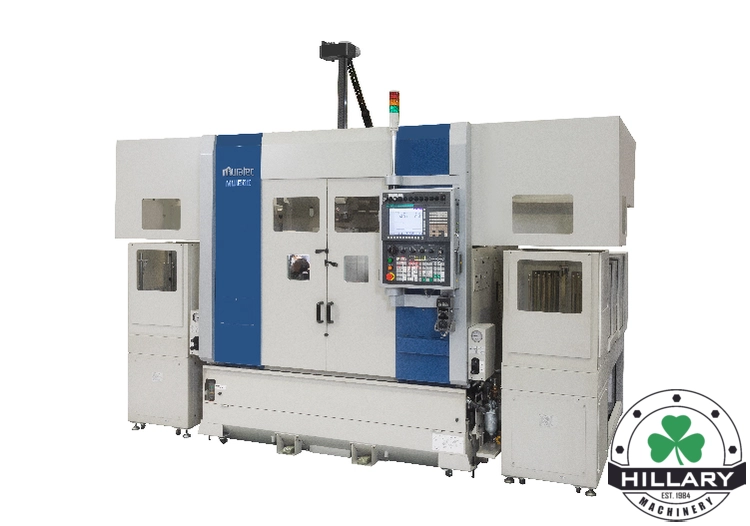

FULL TURN-KEY SOLUTION Reduce idle time by up to three seconds per part with our fastest-ever automated turning center. Armed with a high-speed, lightweight gantry loader, the MW120II boasts traverse speeds 1.5 times faster than a traditional gantry loader.
MW120II Machine Specs & Technical Data
Maximum Chuck Size 8 in
Number of Turret Stations 8 x 2
Maximum Spindle Speed 4500 rpm
Spindle Drive Motor 11 kW/30 min
Total Machine Weight (Approx.) 9700 lb
Gantry Loader Workpiece
Handling Capacity Φ120 mm x 80 mm , up to 3.0kg/piece
Spindle Nose Size JIS A2-5
Spec. of Axes X-axis 24 m/min | Z-axis 24 m/min
