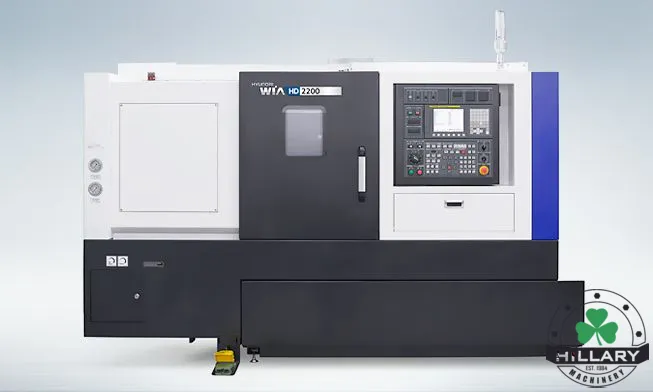

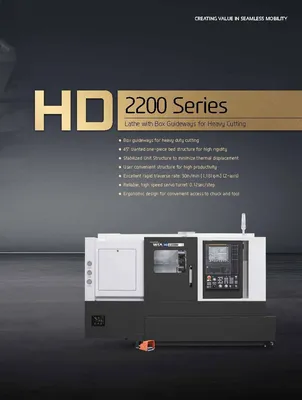

The Hyundai Wia HD2200M box way turning center is designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.

PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia-HD2200%20Series.pdf

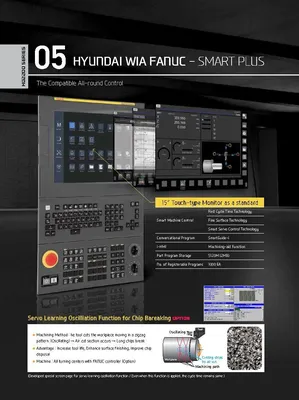

• Hyundai Wia Fanuc i control

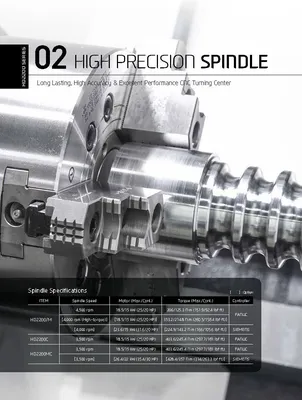

• 4,000 RPM [3,500 RPM] spindle
• Powerful 25HP (18.5kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system

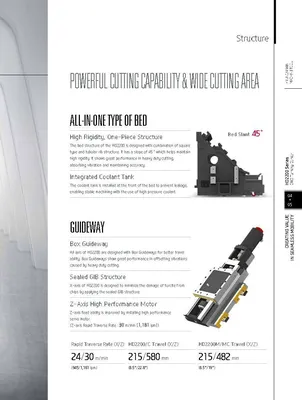

• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X, and 1,181 IPM (30m/min) Z axis
• Manual Tool Setter

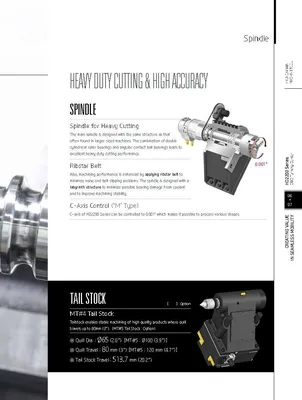

• Programmable tail stock (Tow-along type)
• MT #4 Live Center

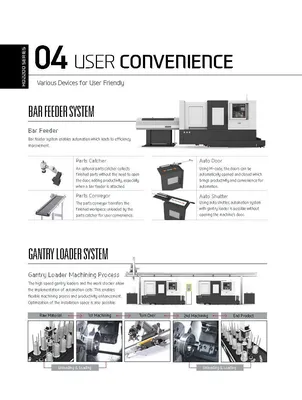

• Parts Catcher

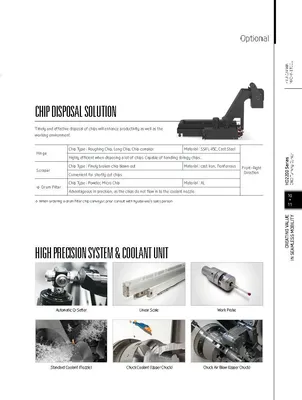

• Right Side Hinge Type Chip Conveyor (42” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 39.6 Gal (150 ℓ) Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 4 Gal(15 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts: and 1 year Labor
• Two-year control and motor warranty: Parts and Labor
