Overview
Type:
Horizontal Machining Centers
Manufacturer:
HYUNDAI WIA
Model:
KH63G
Condition:
Used - Good
Year:
2007
Status:
For Sale
Serial #:
KH63G-0598
Description

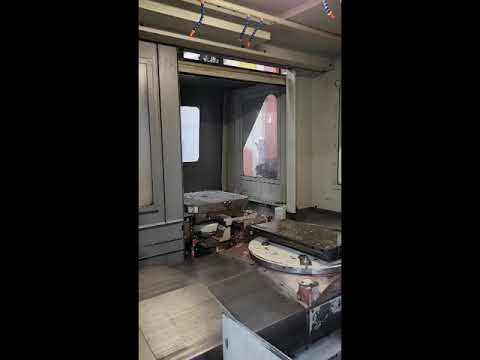

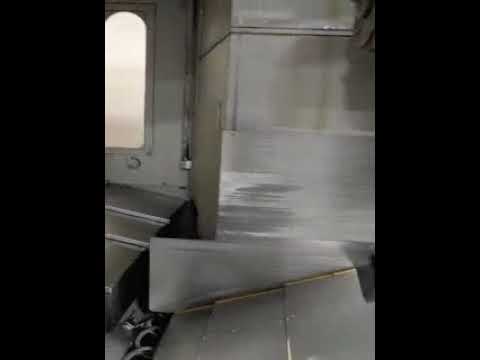

This 2007 Hyundai Kia (WIA) KH63G is a full 4 axis HMC with Fanuc 18iMB control, 43229+/- power on hours and 10571 cutting hours. It is in good condition and fully operational equipped with Fanuc 18I-B Controls, Full NCRT 4th axis 360,000 positions, 1K PSI Coolant Thru The Spindle, 60 Position Tool Changer, Cat 50, 8,000 RPM, 2-Speeds Geared, All Box Way & Chip Conveyor The KH63G is manufactured using the latest state-of-the-art manufacturing technology and is one of the most versatile members of HYUNDAI-WIA's outstanding line of CNC Horizontal Machining Centers. The KH63G has been designed to meet the demanding requirements found in today metal working market.

Specifications
TaperNT #50
Pallet-W24.8"
Pallet-L24.8"
X Travel37.4"
Y Travel32.5"
Z Travel29.9"
Power29.5 hp
RPM8,000 RPM
ControlCNC (18iMB)

■ SPECIFICATIONS CAPACITY: X axis travel 37.4” Y axis travel 32.5” Z axis travel 29.9” Pallet size 24.8" x 24.8") Number of pallets 2 Allowable load 2,205 pounds Maximum Part Swing (Diameter x Height) 44.1” x 34.4” Indexing 1 degree Pallet Tap size 24 x M16 (5/8") Pallet Changing Method Shuttle type Pallet Change Time 26 seconds SPINDLE: Table center to spindle nose 6.9” – 36.8” Table top to spindle center 0” – 32.5” Spindle taper CAT #50 Pull Stud (Retention Knob) 90° Spindle speed range 0 - 8,000 RPM A.C. spindle motor (30min) 26kW (35 HP) Spindle torque (30 min) 680 ft-lbs. AUTOMATIC TOOL CHANGER: Number of Tools 60 Tool Shank CAT #50 Max. Tool Dia. 4.3" with empty adjacent pockets 9.6" Max. Tool Length 23.6" Max. Tool Weight 44 lbs. (77lbs) : opt] Tool change time (tool to tool) 6 seconds Tool change time (chip to chip) 11 seconds. MOTION: X, Y and Z axis rapid traverse rate 787 IPM Cutting Feed .04~197 IPM Least command increment .0001" Ball Screw Size (X, Y, Z axis) 1.97” GENERAL: Machine Height 122.3 inches Floor Space (W) 126.9 inches Floor Space (L) with coolant tank 242 inches Machine weight 30,865 lbs. Power required 36 kVA / 95 amp @ 220V Voltage Required 205 - 235 Volts / 3 Phase

Equipped With

NO. OF TOOL OFFSET 200 TOOL OFFSET AMOUNT MEMORY C PROGRAMMABLE MIRROR IMMAGE HELICAL INTERPOATION TOOL LIFE MANAGEMENT GRAPHIC DISPLAY CUSTOM MACRO B MACRO VARIABLES 200 POLAR COORDINATE COMMAND
